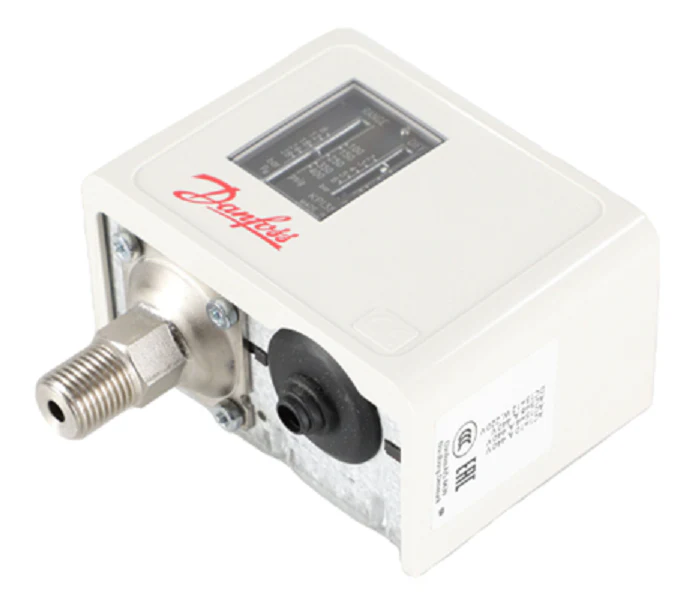

Danfoss 060-508166 Pressure Switch
The Danfoss 060-508166 is a professional-grade KPI 38 pressure switch designed for heavy-duty regulation and monitoring in industrial boiler and pump applications. Built for liquid and gaseous media, this SPDT pressure control features a regulation range of 8 to 28 bar (116 to 406 psig) with an adjustable differential between 1.8 and 6 bar. As an industrial pressure switch, it utilizes a robust bellows sensing element to ensure vibration-proof performance up to 1000 Hz at 4g, making it ideal for high-cycle environments. The unit includes an automatic reset function and is housed in an IP30-rated enclosure, providing reliable Danfoss KPI series performance in temperatures ranging from -40°C to 65°C. For contractors, the G 1/4 A pressure connection and rubber cable gland facilitate a straightforward installation. This HVACR pressure controller ensures precise contact load management with a high electrical rating, supporting system safety and longevity without the reliability issues common in lighter-duty alternatives.
Key Benefits- High Vibration Resistance: Engineered to remain stable in the 0-1000 Hz range, preventing nuisance trips in heavy machinery environments.
- Versatile Media Compatibility: Suitable for both neutral gases and liquids, allowing for standardization across various plant systems.
- Durable Bellows Design: The phosphor bronze bellows provide high repeatability and a long mechanical life under fluctuating pressures.
- Compact Form Factor: Small dimensions allow for efficient mounting in control panels or directly onto manifolds where space is limited.
- Reliable Electrical Switching: Features a high-load SPDT contact system with silver/gold plated contacts for low contact resistance.
What is the maximum working pressure for this unit?
The Danfoss 060-508166 is rated for a maximum working pressure (MWP) of 30 bar (435 psig) and can withstand test pressures up to 30 bar without permanent deformation of the bellows.
Can this switch be used for steam applications?
While the KPI series is suitable for many liquid and gaseous media, for high-pressure steam boiler applications, verify that the media temperature does not exceed the maximum limit of 100°C at the sensing element and that the 8-28 bar range aligns with your safety requirements.
Is the reset function manual or automatic?
This specific model features an automatic reset, meaning the switch will return to its original position once the pressure moves back across the differential set point.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $104.91
-65%$104.91
$36.72Danfoss 060-508166 Pressure Switch
