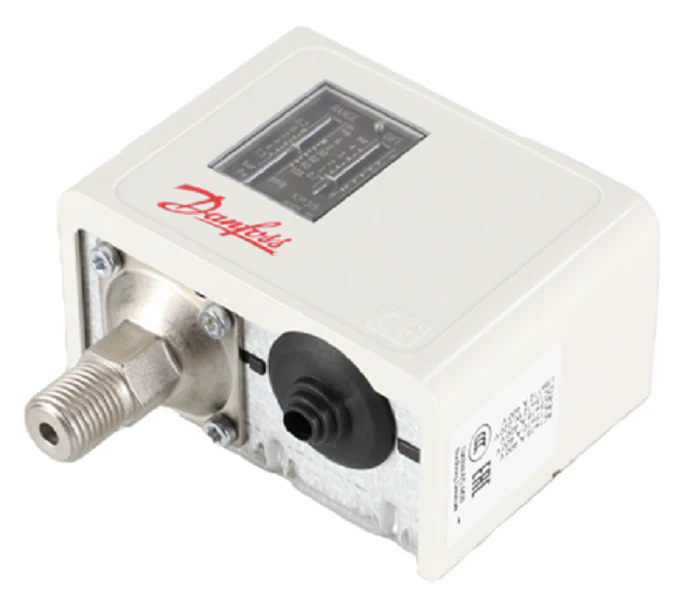

Danfoss 060-504791 Pressure Switch
The Danfoss 060-504791 is a high-performance KP35 pressure switch designed for critical monitoring and regulation in HVACR systems. Built with a robust bellows sensing element, this SPDT pressure control offers a wide regulation range from 6" Hg vacuum to 108 psi (0.2 to 7.5 bar), providing versatility for gaseous media and air applications. The automatic reset function and adjustable differential—ranging from 10 to 58 psi—ensure precise system cycling and equipment protection.
For the service technician, the Danfoss KP35 060-504791 features a compact design and 1/4" G male pressure connection, simplifying panel mounting and field installation. The integrated rubber cable gland supports 6-14 mm cables, while the shock and impact-resistant enclosure carries an IP30 rating. With an electrical rating of up to 16A for AC-1/AC-3 loads, this Danfoss pressure switch maintains high reliability and ultra-short bounce times, minimizing contact wear during high-cycle industrial operations.
Key Benefits- Versatile Pressure Range: Covers a broad spectrum from 6" Hg to 108 psi, suitable for diverse refrigeration and air handling tasks.
- Snap-Action SPDT Contacts: Ensures rapid switching and high electrical capacity (16A 400V) for direct motor or alarm control.
- Industrial Durability: Bellows-operated design provides consistent performance even in environments subject to vibration or mechanical shock.
- Streamlined Installation: Front-facing electrical connections and compact dimensions optimize space in crowded control cabinets.
Is the KP35 suitable for liquid media?
The Danfoss KP35 is primarily optimized for gaseous media and air. While it can be used with water, it must be mounted directly on the piping to prevent internal damage; capillary tube mounting is not recommended for liquid applications.
How do I set the cut-in and cut-out points?
Set the cut-out pressure using the main RANGE scale and the differential using the DIFF scale. The cut-in pressure is calculated as the cut-out value minus the differential setting.
What is the maximum test pressure for this unit?
The unit is rated for a maximum working pressure of 245 psig (17 bar) and a maximum test pressure of 319 psig (22 bar) to ensure safety during system commissioning.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
