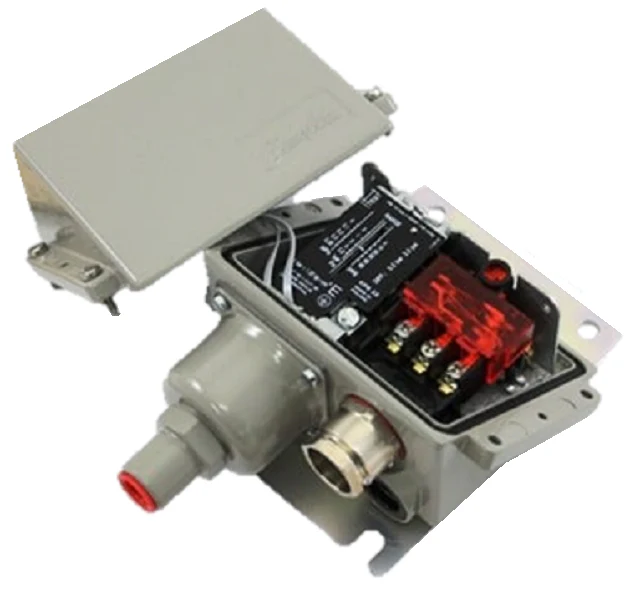

Danfoss 060-310466 Pressure Switch
The Danfoss 060-310466 is a professional-grade KPS33 pressure switch engineered specifically for high-demand industrial and marine environments where mechanical durability is non-negotiable. Featuring a 1/4 inch G female pressure connection and a Single Pole Double Throw (SPDT) contact system, this unit provides precise monitoring and control within a regulation range of 0 to 3.5 bar (0 to 51 psig). The gold-plated contact system ensures superior conductivity and reliability even in low-current logic level applications. Housed in a robust, IP67-rated enclosure made of die-cast aluminum, the KPS33 is highly resistant to shock, vibration, and seawater corrosion, making it a standard choice for diesel plants, compressors, and shipboard alarm systems. With a fixed differential of 0.2 bar (3 psi) and an automatic reset function, this switch maintains tight system parameters while protecting equipment from overpressure up to a maximum test pressure of 10 bar (145 psig).
Key Benefits for Technicians:- Extreme Durability: The IP67-rated die-cast aluminum housing is designed to withstand harsh outdoor environments and heavy vibrations.
- Marine Certified: Fully approved by major agencies including ABS, BV, DNV, and LR for on-board ship applications.
- Precision Switching: Low-pressure 0-3.5 bar range with a consistent 0.2 bar differential for sensitive regulation tasks.
- Versatile Electrical Compatibility: SPDT gold-plated contacts support a wide range of loads, from standard power circuits to low-voltage signals.
- Seawater Resistance: Diaphragm version available specifically to handle pulsations and corrosive media like seawater.
- What is the maximum working pressure for this unit? The KPS33 has a maximum working pressure and test pressure of 10 bar (145 psig).
- Can this be used for vacuum applications? This specific model is designed for a positive regulation range of 0 to 3.5 bar.
- What cable size is compatible with the entry? It features a Pg 13.5 screwed cable entry suitable for cable diameters ranging from 5 mm to 14 mm.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
