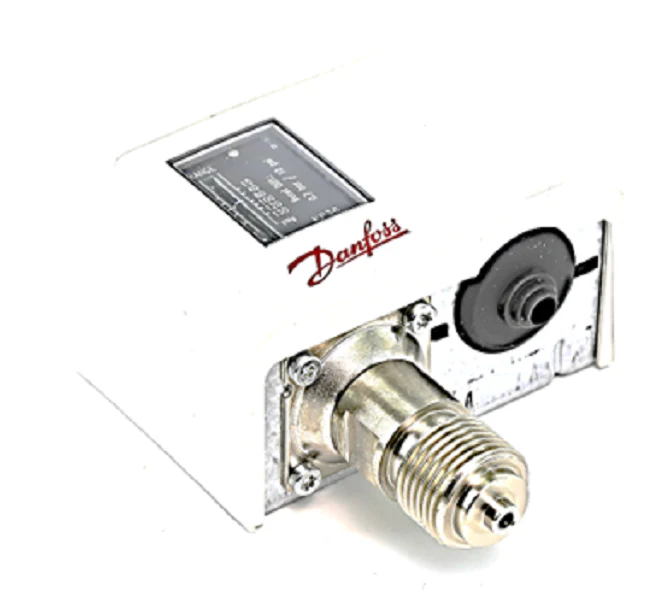

Danfoss 060-216066 Pressure Switch
The Danfoss 060-216066 is a professional-grade KP36 pressure switch designed for heavy-duty regulation and monitoring in industrial HVACR systems. This unit features a single-pole double-throw (SPDT) contact system, allowing for precise control of compressors, fans, or alarms across air, water, and gaseous media. With a regulation range of 1 to 10.5 bar (15 to 150 psi) and a fixed differential of 0.7 bar (10 psi), it provides high-accuracy pressure control for critical system protection. Engineered for reliability, the manual reset function ensures a safety cut-out that prevents equipment damage from overpressure conditions until a technician manually clears the fault. The 1/2-inch G pressure connection and IP30 enclosure rating make it a standard choice for contractors requiring a rugged HVAC pressure switch that withstands demanding environments. Its snap-action contact system minimizes wear and prevents arcing, ensuring long-term stability in industrial refrigeration and climate control applications.
Key Benefits- Versatile Compatibility: Suitable for steam, air, and liquid media, making it a universal solution for varied HVACR pressure monitoring needs.
- Enhanced Safety: The manual reset feature provides an essential failsafe by requiring mechanical intervention after high-pressure events.
- Precision Switching: High-performance SPDT contacts offer 16A resistive load handling at 400V for direct motor or component control.
- Rugged Enclosure: Features an IP30-rated casing with a high-strength bellows construction for stability under vibration.
- Compact Footprint: Designed for easy integration into tight mechanical rooms or internal equipment housings.
How do I adjust the pressure settings on the KP36?
Use the adjustment screws located at the top of the unit to set the cut-in pressure on the range scale. For this 060-216066 model, the differential is fixed, so you only need to calibrate the primary setpoint using a calibrated gauge.
Is this switch compatible with 240V systems?
Yes, the contact system is rated for both 120V and 240V AC operations. It can handle up to 16A resistive loads and is frequently used for single-phase motor control in industrial automation.
Can the manual reset be bypassed?
No, the manual reset is a physical safety mechanism. If your application requires automatic cycling, you should specify an auto-reset Danfoss KP36 variant to avoid frequent manual intervention.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $169.88
-65%$169.88
$59.46Danfoss 060-216066 Pressure Switch
The Danfoss 060-216066 is a professional-grade KP36 pressure switch designed for heavy-duty regulation and monitoring in industrial HVACR systems. This unit features a single-pole double-throw (SPDT) contact system, allowing for precise control of compressors, fans, or alarms across air, water, and gaseous media. With a regulation range of 1 to 10.5 bar (15 to 150 psi) and a fixed differential of 0.7 bar (10 psi), it provides high-accuracy pressure control for critical system protection. Engineered for reliability, the manual reset function ensures a safety cut-out that prevents equipment damage from overpressure conditions until a technician manually clears the fault. The 1/2-inch G pressure connection and IP30 enclosure rating make it a standard choice for contractors requiring a rugged HVAC pressure switch that withstands demanding environments. Its snap-action contact system minimizes wear and prevents arcing, ensuring long-term stability in industrial refrigeration and climate control applications.
Key Benefits- Versatile Compatibility: Suitable for steam, air, and liquid media, making it a universal solution for varied HVACR pressure monitoring needs.
- Enhanced Safety: The manual reset feature provides an essential failsafe by requiring mechanical intervention after high-pressure events.
- Precision Switching: High-performance SPDT contacts offer 16A resistive load handling at 400V for direct motor or component control.
- Rugged Enclosure: Features an IP30-rated casing with a high-strength bellows construction for stability under vibration.
- Compact Footprint: Designed for easy integration into tight mechanical rooms or internal equipment housings.
How do I adjust the pressure settings on the KP36?
Use the adjustment screws located at the top of the unit to set the cut-in pressure on the range scale. For this 060-216066 model, the differential is fixed, so you only need to calibrate the primary setpoint using a calibrated gauge.
Is this switch compatible with 240V systems?
Yes, the contact system is rated for both 120V and 240V AC operations. It can handle up to 16A resistive loads and is frequently used for single-phase motor control in industrial automation.
Can the manual reset be bypassed?
No, the manual reset is a physical safety mechanism. If your application requires automatic cycling, you should specify an auto-reset Danfoss KP36 variant to avoid frequent manual intervention.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
