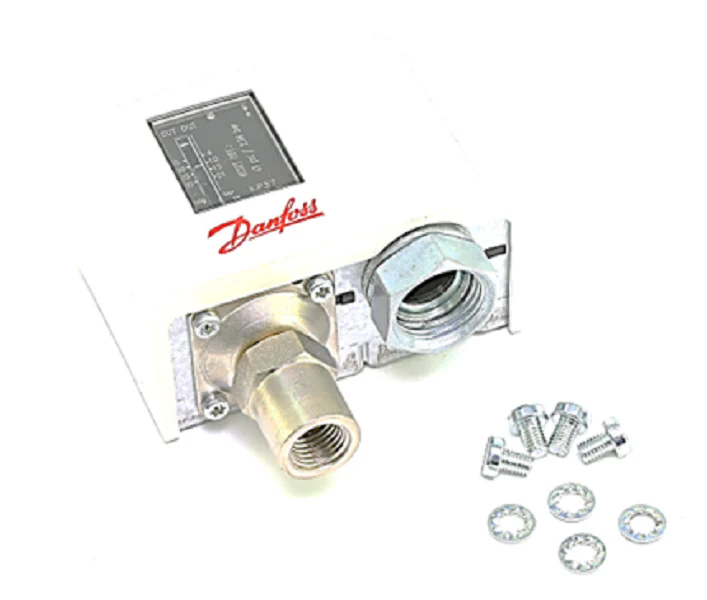

Danfoss 060-214791 Pressure Switch
The Danfoss 060-214791 Pressure Switch (Series KP37) is a heavy-duty industrial pressure control designed for precise regulation and monitoring in high-pressure HVACR and fluid power systems. Built with a single-pole changeover switch (SPDT), this unit provides reliable limit protection for steam, air, gaseous, and liquid media. This specific model features a wide regulating pressure range of 58 to 300 psi (4 to 21 bar) and a fixed differential of 43 psi (3 bar), ensuring consistent system performance without the need for manual adjustment of the deadband. The manual reset (M/R) function is specifically engineered for high-pressure cutout applications, requiring a technician's intervention before the system can resume operation, which is critical for protecting downstream components from over-pressure conditions. With its 1/4-18 NPT connection and robust IP30 enclosure, the Danfoss KP-37 offers ultra-short bounce times and snap-action contacts to minimize electrical chatter and extend the operational life of the switch contacts in demanding environments.
Key Benefits- High-Pressure Safety: The manual reset mechanism ensures the Danfoss 060-214791 provides positive lockout during over-pressure events for maximum system protection.
- Robust Contact System: Features snap-action electrical contacts that reduce wear, bounce, and vibration-induced chatter, maintaining electrical integrity in high-vibration industrial settings.
- Versatile Media Compatibility: Suitable for a broad range of media including steam, air, and non-corrosive liquids, making it a standard choice for boiler and hydraulic applications.
- Compact Footprint: The space-saving design and front-facing electrical connections allow for easy integration into control panels and tight mechanical rooms.
- Reliable Mechanical Life: The bellows sensing element is engineered for high-cycle durability, providing stable pressure monitoring over the life of the HVACR system.
Is the Danfoss KP37 suitable for steam applications?
Yes, the Danfoss KP37 series is rated for use with steam, provided the media is neutral and within the specified temperature limits of the bellows and housing.
What is the difference between a fixed and adjustable differential?
A fixed differential like the 43 psi deadband on the 060-214791 means the reset point is pre-set at the factory relative to your cutout point, ensuring consistent behavior in safety-critical high-limit applications.
Does this switch require a specific mounting orientation?
While the switch is robust against vibration, it is standard practice to mount the KP-37 pressure switch with the bellows facing downward to prevent moisture or debris from accumulating in the sensing element.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $214.35
-65%$214.35
$75.02Danfoss 060-214791 Pressure Switch
The Danfoss 060-214791 Pressure Switch (Series KP37) is a heavy-duty industrial pressure control designed for precise regulation and monitoring in high-pressure HVACR and fluid power systems. Built with a single-pole changeover switch (SPDT), this unit provides reliable limit protection for steam, air, gaseous, and liquid media. This specific model features a wide regulating pressure range of 58 to 300 psi (4 to 21 bar) and a fixed differential of 43 psi (3 bar), ensuring consistent system performance without the need for manual adjustment of the deadband. The manual reset (M/R) function is specifically engineered for high-pressure cutout applications, requiring a technician's intervention before the system can resume operation, which is critical for protecting downstream components from over-pressure conditions. With its 1/4-18 NPT connection and robust IP30 enclosure, the Danfoss KP-37 offers ultra-short bounce times and snap-action contacts to minimize electrical chatter and extend the operational life of the switch contacts in demanding environments.
Key Benefits- High-Pressure Safety: The manual reset mechanism ensures the Danfoss 060-214791 provides positive lockout during over-pressure events for maximum system protection.
- Robust Contact System: Features snap-action electrical contacts that reduce wear, bounce, and vibration-induced chatter, maintaining electrical integrity in high-vibration industrial settings.
- Versatile Media Compatibility: Suitable for a broad range of media including steam, air, and non-corrosive liquids, making it a standard choice for boiler and hydraulic applications.
- Compact Footprint: The space-saving design and front-facing electrical connections allow for easy integration into control panels and tight mechanical rooms.
- Reliable Mechanical Life: The bellows sensing element is engineered for high-cycle durability, providing stable pressure monitoring over the life of the HVACR system.
Is the Danfoss KP37 suitable for steam applications?
Yes, the Danfoss KP37 series is rated for use with steam, provided the media is neutral and within the specified temperature limits of the bellows and housing.
What is the difference between a fixed and adjustable differential?
A fixed differential like the 43 psi deadband on the 060-214791 means the reset point is pre-set at the factory relative to your cutout point, ensuring consistent behavior in safety-critical high-limit applications.
Does this switch require a specific mounting orientation?
While the switch is robust against vibration, it is standard practice to mount the KP-37 pressure switch with the bellows facing downward to prevent moisture or debris from accumulating in the sensing element.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
