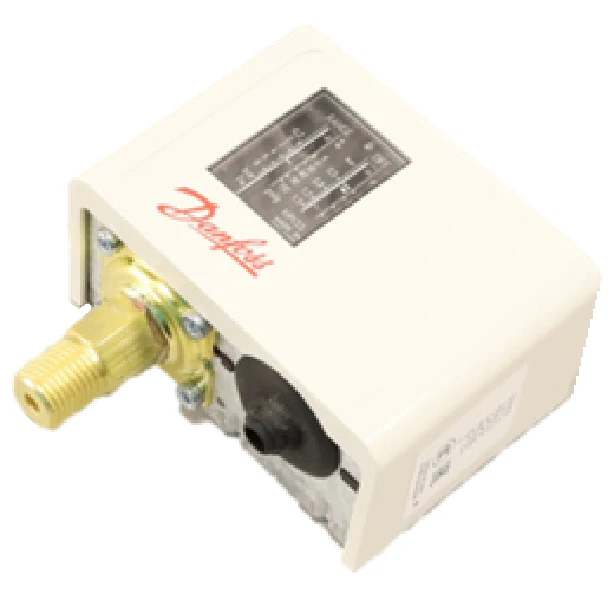

Danfoss 060-121766 Pressure Control
The Danfoss 060-121766 (KPI35) is a heavy-duty single-pole changeover (SPDT) pressure control engineered for regulating, monitoring, and alarm systems in industrial HVACR and process applications. Built with silver-plated cadmium oxide contacts, this bellows-type pressure switch ensures high reliability and ultra-short bounce times, minimizing contact wear during high-cycle operations. It features a regulation range of -0.2 to 8.0 bar (-3 to 116 psi) with an adjustable differential between 0.4 and 1.5 bar, allowing for precise calibration in systems utilizing gaseous or liquid media. The unit is designed with a G 1/4 A male pressure connection and an IP30 rated enclosure, making it a robust choice for plant rooms and mechanical spaces. Rated for an 18 bar test pressure and compatible with widespread refrigerants and air/water systems, the KPI35 facilitates dependable automatic reset functionality for motor or solenoid control, ensuring system safety without the need for manual intervention after temporary pressure fluctuations.
Key Benefits for Contractors:- Versatile Media Compatibility: Suitable for air, water, and gaseous media, providing a single-part solution for diverse industrial monitoring needs.
- Enhanced Contact Life: Features high contact load capacity and snap-action mechanism to prevent arcing and ensure long-term electrical stability.
- Precision Control: The adjustable differential allows for fine-tuning the deadband to prevent short-cycling of compressors or pumps.
- Compact and Rugged: Small footprint with a vibration-resistant bellows design, essential for mounting directly to high-capacity mechanical equipment.
Is this control compatible with liquid systems?
Yes, the KPI35 is designed to work effectively with both liquid and gaseous media, provided the maximum working pressure does not exceed 18 bar.
What is the reset function on this specific model?
The 060-121766 features an automatic reset, which means the contacts will return to their original state once the system pressure moves back within the set differential range.
Can I use this for low-pressure cut-out?
Absolutely. With a range starting at -0.2 bar, it is frequently used for low-pressure protection and regulation in light industrial refrigeration and HVAC systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $106.70
-65%$106.70
$37.34Danfoss 060-121766 Pressure Control
The Danfoss 060-121766 (KPI35) is a heavy-duty single-pole changeover (SPDT) pressure control engineered for regulating, monitoring, and alarm systems in industrial HVACR and process applications. Built with silver-plated cadmium oxide contacts, this bellows-type pressure switch ensures high reliability and ultra-short bounce times, minimizing contact wear during high-cycle operations. It features a regulation range of -0.2 to 8.0 bar (-3 to 116 psi) with an adjustable differential between 0.4 and 1.5 bar, allowing for precise calibration in systems utilizing gaseous or liquid media. The unit is designed with a G 1/4 A male pressure connection and an IP30 rated enclosure, making it a robust choice for plant rooms and mechanical spaces. Rated for an 18 bar test pressure and compatible with widespread refrigerants and air/water systems, the KPI35 facilitates dependable automatic reset functionality for motor or solenoid control, ensuring system safety without the need for manual intervention after temporary pressure fluctuations.
Key Benefits for Contractors:- Versatile Media Compatibility: Suitable for air, water, and gaseous media, providing a single-part solution for diverse industrial monitoring needs.
- Enhanced Contact Life: Features high contact load capacity and snap-action mechanism to prevent arcing and ensure long-term electrical stability.
- Precision Control: The adjustable differential allows for fine-tuning the deadband to prevent short-cycling of compressors or pumps.
- Compact and Rugged: Small footprint with a vibration-resistant bellows design, essential for mounting directly to high-capacity mechanical equipment.
Is this control compatible with liquid systems?
Yes, the KPI35 is designed to work effectively with both liquid and gaseous media, provided the maximum working pressure does not exceed 18 bar.
What is the reset function on this specific model?
The 060-121766 features an automatic reset, which means the contacts will return to their original state once the system pressure moves back within the set differential range.
Can I use this for low-pressure cut-out?
Absolutely. With a range starting at -0.2 bar, it is frequently used for low-pressure protection and regulation in light industrial refrigeration and HVAC systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
