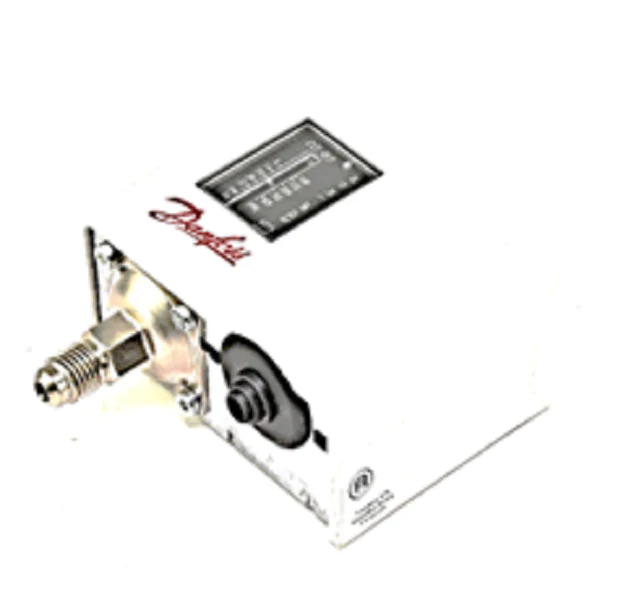

Danfoss 060-117391 Pressure Control
The Danfoss 060-117391 is a job-ready KP5 pressure control designed for heavy-duty commercial refrigeration and air conditioning systems. This high-pressure limiter features a manual reset mechanism, acting as a critical safety cut-out that requires technician intervention before the system can restart. Built with a Single Pole Double Throw (SPDT) contact system, it provides versatile electrical switching capabilities for compressors or fan motors. The unit operates within a regulation range of 8 to 32 bar (116 to 464 psig) and maintains a fixed differential pressure of 3 bar (43 psi). With its 1/4 inch flare pressure connection and IP30 rated enclosure, this Danfoss KP series switch is engineered to withstand the rigors of mechanical rooms while providing repeatable, vibration-resistant performance. It is compatible with all non-flammable HFC and HCFC refrigerants, making it a reliable standard for discharge pressure monitoring in the field.
Key Benefits- Manual Reset Safety: Provides high-limit protection by ensuring an operator identifies the cause of an overpressure event before system reactivation.
- Robust SPDT Contacts: The SPDT contact function allows for simultaneous control of the compressor circuit and an alarm or auxiliary signal.
- Vibration Resistant Design: Engineered with a trip-free mechanism and high-load bellows to prevent "bounce" and ensure precise cut-out points.
- Universal Compatibility: Approved for use with common refrigerants including R404A, R134a, and R407C in diverse HVACR applications.
- Field-Proven Reliability: The compact design and rubber cable gland electrical entry simplify installation in tight condenser housings.
What is the maximum working pressure for the KP5?
The Danfoss 060-117391 is rated for a Maximum Working Pressure (MWP) of 35 bar (510 psig) and a test pressure of up to 35 bar Pe.
At what point can the manual reset be engaged?
For this high-pressure control, the manual reset button can only be successfully cleared once the system pressure drops at least 3 bar (43 psi) below the set cut-out point.
Can this be used for liquid line applications?
Generally, KP pressure controls are intended for suction or discharge gas monitoring. Consult the specific piping diagram, as these units are typically not recommended for direct liquid line mounting where surge or hammer may occur.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
