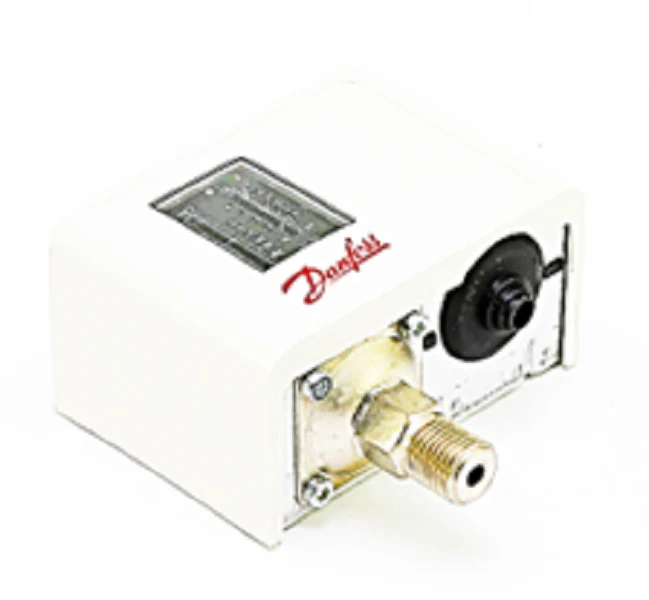

Danfoss 060-110891 Pressure Switch
As a seasoned technician, you know that consistent pressure regulation is the backbone of any reliable HVACR or industrial steam system. The Danfoss 060-110891 Pressure Switch, part of the proven KP36 series, is engineered specifically for monitoring, regulating, and alarm signaling in systems utilizing gaseous media and air. This SPDT pressure switch features a wide regulation range of 2 to 14 bar (29 to 203 PSI) with an adjustable differential between 0.7 and 4 bar, allowing for precise calibration to your specific load requirements. Designed for high-duty cycles, the unit incorporates silver contacts with an ultra-short bounce time, which significantly reduces wear and prevents contact welding during frequent switching. The G 1/4 A male pressure connection and compact bellows-actuated design make it a versatile drop-in replacement for compressor protection and pump control. Whether you are wiring it for single-phase AC motors up to 2 kW or integrating it into a complex HVACR control circuit, this switch provides the mechanical durability and electrical reliability required for demanding field environments.
Key Benefits for the Contractor- Precision Control: Features a 2-14 bar setting range with a clear front-facing scale for simplified setpoint adjustments.
- High Contact Load: Equipped with SPDT silver contacts capable of handling 16A AC-1 resistive loads and 112A blocked rotor current.
- Robust Construction: The bellows-based sensing element is shock and impact resistant, maintaining accuracy even in high-vibration industrial settings.
- Flexible Integration: Suitable for both alternating current (AC) and direct current (DC) applications, offering IP30 enclosure protection (upgradeable to IP44/IP55 with appropriate covers).
- Simplified Installation: Compact footprint saves space in tight control panels and includes a rubber cable gland for 6-14mm wiring.
What is the difference between the 'Range' and 'Differential' settings?
The Range setting determines the high-end "cut-out" pressure where the KP36 switch trips. The Differential is the pressure drop required before the switch resets (cut-in). On this model, both are manually adjustable to fine-tune system cycling.
Can this switch be used with liquid refrigerants?
The Danfoss 060-110891 is primarily designed for gaseous media and air. For liquid applications, verify that the media is compatible with the switch's bellows material or consider a KPI series variant for heavy-duty fluid control.
How do I ensure the most accurate pressure setting during commissioning?
While the internal scale provides a reliable reference, you should always use a calibrated external pressure gauge during the initial setup to verify the exact cut-in and cut-out points for the system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $98.65
-65%$98.65
$34.53Danfoss 060-110891 Pressure Switch
As a seasoned technician, you know that consistent pressure regulation is the backbone of any reliable HVACR or industrial steam system. The Danfoss 060-110891 Pressure Switch, part of the proven KP36 series, is engineered specifically for monitoring, regulating, and alarm signaling in systems utilizing gaseous media and air. This SPDT pressure switch features a wide regulation range of 2 to 14 bar (29 to 203 PSI) with an adjustable differential between 0.7 and 4 bar, allowing for precise calibration to your specific load requirements. Designed for high-duty cycles, the unit incorporates silver contacts with an ultra-short bounce time, which significantly reduces wear and prevents contact welding during frequent switching. The G 1/4 A male pressure connection and compact bellows-actuated design make it a versatile drop-in replacement for compressor protection and pump control. Whether you are wiring it for single-phase AC motors up to 2 kW or integrating it into a complex HVACR control circuit, this switch provides the mechanical durability and electrical reliability required for demanding field environments.
Key Benefits for the Contractor- Precision Control: Features a 2-14 bar setting range with a clear front-facing scale for simplified setpoint adjustments.
- High Contact Load: Equipped with SPDT silver contacts capable of handling 16A AC-1 resistive loads and 112A blocked rotor current.
- Robust Construction: The bellows-based sensing element is shock and impact resistant, maintaining accuracy even in high-vibration industrial settings.
- Flexible Integration: Suitable for both alternating current (AC) and direct current (DC) applications, offering IP30 enclosure protection (upgradeable to IP44/IP55 with appropriate covers).
- Simplified Installation: Compact footprint saves space in tight control panels and includes a rubber cable gland for 6-14mm wiring.
What is the difference between the 'Range' and 'Differential' settings?
The Range setting determines the high-end "cut-out" pressure where the KP36 switch trips. The Differential is the pressure drop required before the switch resets (cut-in). On this model, both are manually adjustable to fine-tune system cycling.
Can this switch be used with liquid refrigerants?
The Danfoss 060-110891 is primarily designed for gaseous media and air. For liquid applications, verify that the media is compatible with the switch's bellows material or consider a KPI series variant for heavy-duty fluid control.
How do I ensure the most accurate pressure setting during commissioning?
While the internal scale provides a reliable reference, you should always use a calibrated external pressure gauge during the initial setup to verify the exact cut-in and cut-out points for the system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
As a seasoned technician, you know that consistent pressure regulation is the backbone of any reliable HVACR or industrial steam system. The Danfoss 060-110891 Pressure Switch, part of the proven KP36 series, is engineered specifically for monitoring, regulating, and alarm signaling in systems utilizing gaseous media and air. This SPDT pressure switch features a wide regulation range of 2 to 14 bar (29 to 203 PSI) with an adjustable differential between 0.7 and 4 bar, allowing for precise calibration to your specific load requirements. Designed for high-duty cycles, the unit incorporates silver contacts with an ultra-short bounce time, which significantly reduces wear and prevents contact welding during frequent switching. The G 1/4 A male pressure connection and compact bellows-actuated design make it a versatile drop-in replacement for compressor protection and pump control. Whether you are wiring it for single-phase AC motors up to 2 kW or integrating it into a complex HVACR control circuit, this switch provides the mechanical durability and electrical reliability required for demanding field environments.
Key Benefits for the Contractor- Precision Control: Features a 2-14 bar setting range with a clear front-facing scale for simplified setpoint adjustments.
- High Contact Load: Equipped with SPDT silver contacts capable of handling 16A AC-1 resistive loads and 112A blocked rotor current.
- Robust Construction: The bellows-based sensing element is shock and impact resistant, maintaining accuracy even in high-vibration industrial settings.
- Flexible Integration: Suitable for both alternating current (AC) and direct current (DC) applications, offering IP30 enclosure protection (upgradeable to IP44/IP55 with appropriate covers).
- Simplified Installation: Compact footprint saves space in tight control panels and includes a rubber cable gland for 6-14mm wiring.
What is the difference between the 'Range' and 'Differential' settings?
The Range setting determines the high-end "cut-out" pressure where the KP36 switch trips. The Differential is the pressure drop required before the switch resets (cut-in). On this model, both are manually adjustable to fine-tune system cycling.
Can this switch be used with liquid refrigerants?
The Danfoss 060-110891 is primarily designed for gaseous media and air. For liquid applications, verify that the media is compatible with the switch's bellows material or consider a KPI series variant for heavy-duty fluid control.
How do I ensure the most accurate pressure setting during commissioning?
While the internal scale provides a reliable reference, you should always use a calibrated external pressure gauge during the initial setup to verify the exact cut-in and cut-out points for the system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
