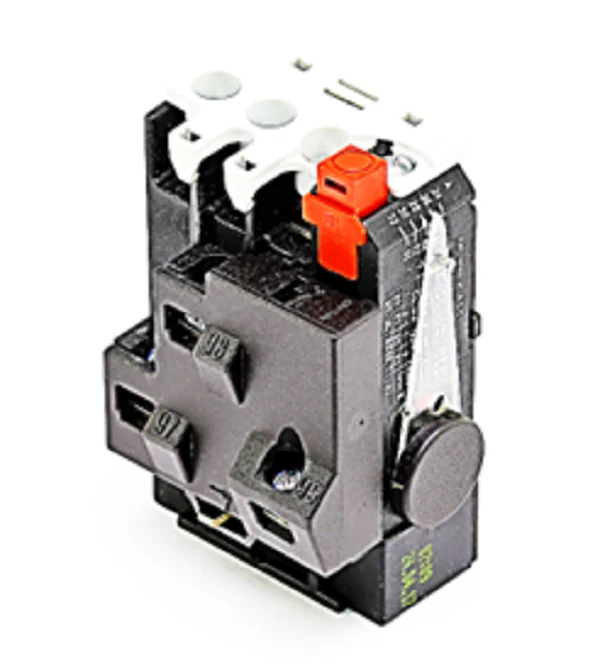

Danfoss 047H0215 Relay
The Danfoss 047H0215 TI 30C Thermal Overload Relay is a precision-engineered motor protection component designed for integration with CI 6 through CI 30 contactors. Engineered for commercial and industrial HVACR motor protection, this relay offers an adjustable current range of 24 to 32 Amps. The unit utilizes a bimetallic mechanism to provide reliable phase failure protection, tripping the circuit if a loss of phase is detected to prevent winding burnout. With its differential mechanism and temperature-compensated design, it maintains calibrated trip accuracy in ambient temperatures ranging from -5°C to +40°C. The integrated stop/reset button and manual/automatic reset selectors allow for flexible field configuration based on specific compressor or pump requirements. This thermal overload relay for motor-starters ensures long-term operational stability by monitoring current draw and reacting to sustained overcurrent conditions that lead to equipment failure.
Key Benefits
- Broad Compatibility: Seamlessly mounts to Danfoss CI series contactors for compact control panel footprints.
- Phase Loss Sensitivity: Immediate response to unbalanced loads, protecting three-phase motors from premature failure.
- Field Adjustability: Easy-to-read dial for precise trip current settings between 24A and 32A.
- Auxiliary Signaling: Built-in 1 NO and 1 NC auxiliary contacts for remote status monitoring and interlocking.
Common Questions
What is the maximum voltage rating for the auxiliary contacts?
The auxiliary contacts are typically rated for 500V AC, suitable for standard control circuit applications in most industrial environments.
Does this unit support manual reset after a trip?
Yes, the 047H0215 features a selector switch to toggle between manual and automatic reset modes depending on the safety requirements of the equipment.
Can this relay be used with motors smaller than 24 Amps?
For optimal protection, the motor's Full Load Amps (FLA) must fall within the 24A to 32A range. For lower current applications, a different TI 16C or TI 25C model should be sourced.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
