Danfoss 034G7074 Cable

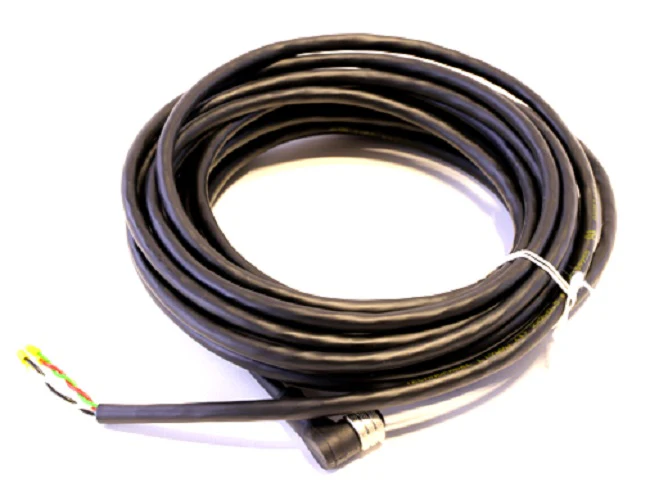

The Danfoss 034G7074 is a 26.2-foot cable (8 meters) specifically designed for the KVS series of electrically operated suction modulating valves. This cable assembly provides the necessary 4-wire connection to interface the valve’s stepper motor with an electronic controller, such as an EKC 368 or EKC 316. Given its length, it is ideal for large-scale refrigeration applications where the controller and evaporator are situated at significant distances. The cable features a robust M12 connector with an IP67 rating, ensuring a moisture-tight seal and reliable signal integrity in harsh, low-temperature environments. Maintaining precise modulating control of suction pressure depends on the low-impedance connection provided by this factory-spec cable, which prevents voltage drop issues common with field-spliced wiring. For contractors servicing supermarket refrigeration or cold storage systems, utilizing the correct stepper motor cable is critical for achieving the high-resolution positioning required for optimal system efficiency.
Key Benefits
- Extended Lead Length: The 8-meter span accommodates remote controller mounting without requiring additional junction boxes.
- Industrial Build Quality: High-grade insulation and IP67 protection safeguard against condensation and oil exposure in the mechanical room.
- Plug-and-Play Integration: Pre-terminated M12 circular connector ensures proper pin configuration for KVS valve motors.
- EMI Suppression: Proper shielding reduces electromagnetic interference, ensuring accurate stepper motor pulses.
- Standardized Compatibility: Verified for use across the entire Danfoss KVS range, including KVS 15, 35, and 42 models.
Common Questions
What is the maximum distance I can run this cable from the controller?
This 26.2-foot (8m) cable is the factory-extended option. If your application requires more length, ensure you are using a controller with sufficient current output to overcome potential voltage drops across the KVS stepper motor windings.
Can I cut and splice this cable if it is too long?
While possible, it is not recommended. The M12 connector is factory-molded for environmental sealing; cutting the cable compromises the IP67 rating and can introduce resistance that affects valve positioning accuracy.
Is this cable compatible with Danfoss ETS valves?
While both use M12 connections, always verify the specific pinout and wire gauge requirements in the technical data sheet, as 034G7074 is specifically cataloged for KVS suction modulating valves.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
