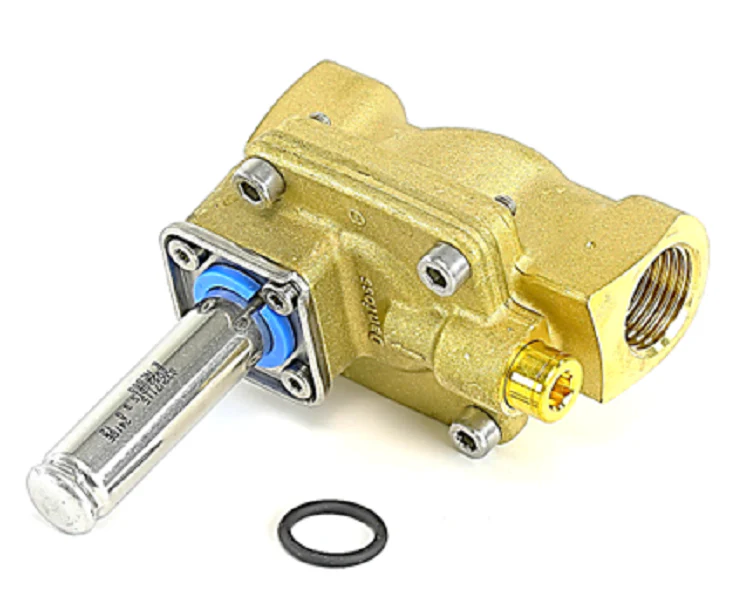

Danfoss 032U7115 Valve
The Danfoss 032U7115 is a robust EV220B 15 series solenoid valve body engineered for demanding HVACR and industrial fluid control applications. This normally closed (N/C), 2/2-way servo-operated diaphragm valve features a 1/2-inch G thread connection and is constructed from high-grade brass with EPDM seals, making it ideal for water, brine, and neutral media. Designed for reliability in the field, it operates with a differential pressure range of 0.3 to 16 bar and supports a flow capacity (Kv) of 4 m³/h. The Danfoss EV220B 15B incorporates a built-in pilot filter to protect the armature tube from contamination, ensuring longevity even in systems where debris might be present. This "less coil" version allows for maximum flexibility, enabling technicians to pair the body with specific clip-on solenoid coils (IP67 rated) to meet site-specific voltage requirements without opening the hydraulic circuit. Its water-hammer damped design utilizes an optimized diaphragm shape to significantly reduce pressure surges during closing.
Key Benefits for Technicians:- Interchangeable Coil System: The clip-on coil design permits rapid assembly and replacement without tools or system drainage.
- Contamination Resistance: Features a built-in pilot filter that facilitates self-cleaning, reducing maintenance calls due to clogged orifices.
- Hydraulic Protection: Integrated water hammer damping protects downstream piping by decelerating the closing stroke.
- Durable Construction: Brass body and EPDM sealing allow for medium temperatures between -22°F and 248°F.
- Versatile Compatibility: Standardized 1/2" NPT/G connections ensure fitment in diverse hydronic and refrigeration setups.
- Does this include the electrical coil? No, the 032U7115 is a valve body only. You must select a compatible Danfoss clip-on coil based on your specific voltage (AC or DC) requirements.
- What is the minimum pressure required for operation? As a servo-operated valve, it requires a minimum differential pressure of 0.3 bar (approx. 4.4 psi) to open effectively.
- Can this valve be used with oil or steam? This model uses EPDM seals, which are optimized for water and glycol. For oil-based media, an FKM or NBR seal variant is recommended to prevent seal swelling.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
