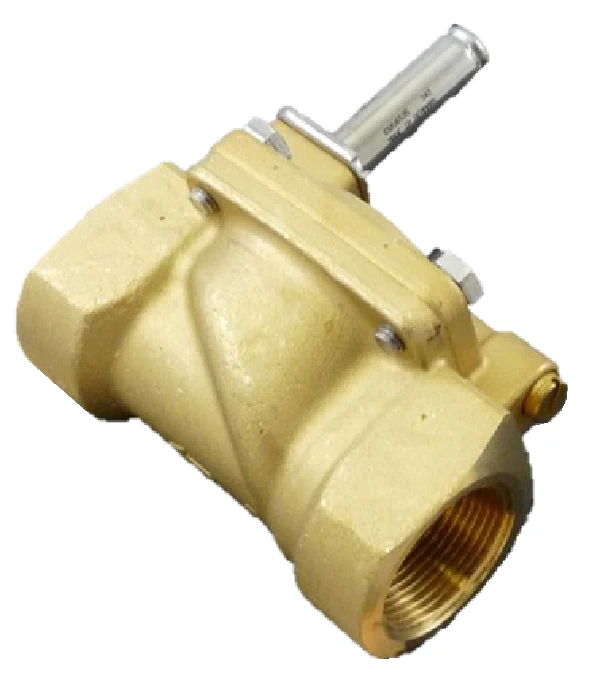

Danfoss 032U6535 Valve
The Danfoss 032U6535 EV220B 32B is a high-capacity, servo-operated solenoid valve engineered for professional HVAC and industrial fluid control. This 1 1/4" NPT solenoid valve features a robust brass body and an EPDM seal, making it a reliable choice for managing water, brine, and neutral media in closed and open systems. Operating as a normally closed (NC) 2-way valve, it utilizes a servo-operated diaphragm design to handle a flow rate of 18 m³/h with a Cv 20.8 (21 CV) rating. This specific model includes a soft close feature to mitigate water hammer, protecting your piping infrastructure from pressure spikes. Designed for heavy-duty service, it supports a pressure range of 4.35 to 142 psi and remains stable across a temperature range of 14°F to 248°F. Contractors frequently specify the Danfoss EV220B series for its high-performance dampening and international certifications including UL, CE, and cURus.
Key Benefits for Installations
- Reduced System Stress: Integrated soft close functionality minimizes water hammer, extending the life of your plumbing and fittings.
- High Flow Efficiency: The 21 CV flow coefficient ensures minimal pressure drop across the valve in high-demand water flow regulation applications.
- Broad Media Compatibility: High-grade EPDM seals provide excellent resistance to heat and glycol-based brines, preventing premature seal degradation.
- Industrial Durability: The forged brass body provides the mechanical strength required for commercial HVAC and water treatment environments.
- Simplified Maintenance: The EV220B 32B design allows for easy access to internal components if cleaning or diaphragm inspection is required in the field.
Common Questions
Does this valve requires a minimum differential pressure to operate?
Yes, as a servo-operated diaphragm valve, the Danfoss 032U6535 requires a minimum differential pressure of approximately 4.35 psi (0.3 bar) to open and close correctly.
Can this valve be used with steam?
While the EPDM seal handles up to 248°F, this specific Danfoss solenoid valve is optimized for water and neutral media. For high-pressure steam, a dedicated steam-rated valve with PTFE or specialized seals is recommended.
What coil options are compatible with this valve body?
The 032U6535 is compatible with the Danfoss clip-on coil system (typically Type BO or BQ coils), allowing for flexible voltage configurations depending on your control circuit requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
