Danfoss 027X0168 Actuator

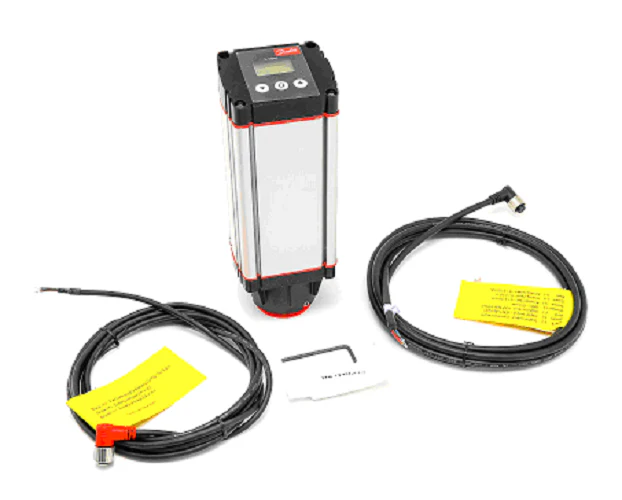

The Danfoss 027X0168 ICAD 1200 Actuator with 9.8-foot (3m) cables is engineered for precise regulation in industrial refrigeration systems. This motor-operated valve actuator serves as the critical interface for the ICM series, providing high-speed digital stepper motor technology capable of driving large valves from ICM 40 to ICM 150. Operating on a 24V DC supply, it offers full backwards compatibility but serves as the necessary direct replacement for the obsolete 027H1201. When performing this field upgrade, contractors must utilize the included updated cable set to ensure signal integrity and proper interface with the high-resolution LCD display and MMI (Man Machine Interface). The unit supports versatile control via 4-20 mA or 0-10 V modulating analog signals, as well as digital ON/OFF inputs, allowing for seamless integration into existing PLC or SCADA architectures. For low-temperature environments, the 027X0168 maintains operational stability down to -22°F by adjusting internal parameters, ensuring reliable fail-safe positioning and torque monitoring during power loss events.
Key Benefits for Industrial Systems- Broad Compatibility: Fully optimized for Danfoss ICM motor valves sizes 40, 50, 65, 100, 125, and 150.
- Advanced Troubleshooting: Integrated 7-segment LCD display and status lights provide real-time opening degree feedback and alarm notifications.
- Robust Security: Features password protection to prevent unauthorized parameter changes in critical cooling loops.
- Fast Installation: The magnetic coupling design allows for a hermetic seal and quick mechanical mounting using a 2.5 mm hexagon key.
- Fail-Safe Flexibility: Configurable recovery modes ensure the valve opens, closes, or maintains position during a 24V DC supply failure.
Is the 027X0168 a drop-in replacement for the Danfoss 027H1201?
Yes, it is the direct functional replacement. However, unlike the older ICAD 1200 models, you must replace the cables with those provided in this kit to accommodate the updated pin configurations and ensure correct communication.
Which input signals does this actuator support?
It is highly versatile, accepting 0/4-20 mA current signals and 0/2-10 V voltage signals, in addition to digital inputs for discrete ON/OFF valve operation.
Can this actuator be used in sub-zero environments?
The unit is rated for ambient temperatures as low as -22°F (-30°C). For extremely low media temperatures, technicians should configure parameters i30 and i31 within the menu to maintain performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
