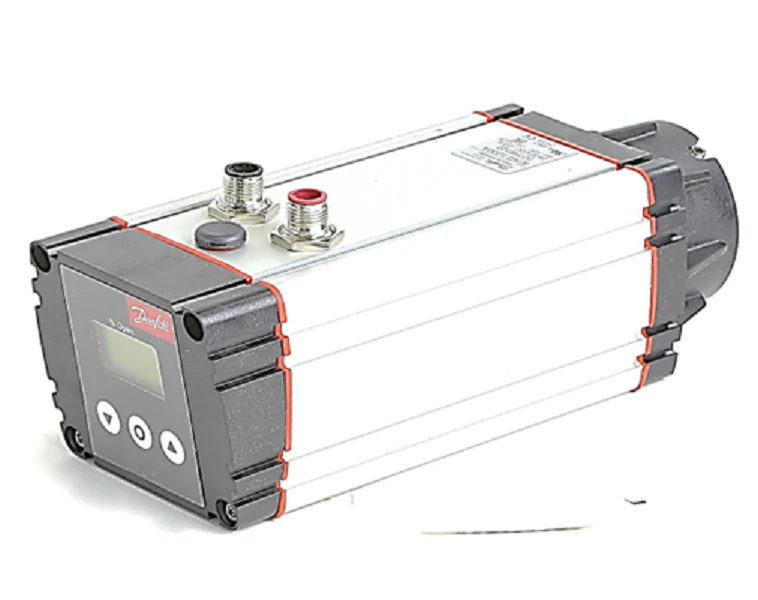

Danfoss 027H9122 Actuator
The Danfoss 027H9122 Actuator (ICAD 1200A) is a high-performance electronic motor actuator engineered for precise control of motor-operated valves in industrial refrigeration systems. This unit utilizes advanced stepper motor technology to deliver accurate positioning for Danfoss ICM series valves, specifically larger sizes such as ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, and ICM 150. Designed for versatility, it supports modulating control via 4-20 mA or 0-10 V signals, as well as digital ON/OFF operation. The integration of an MMI display allows technicians to monitor the opening degree and adjust parameters directly on-site without external tools. The housing is rated at IP67, ensuring resilience against moisture and harsh ambient conditions typical in mechanical rooms. This specific configuration is provided without cables, allowing for custom field wiring or the reuse of existing compatible cable sets in retrofits.
Key Benefits:- Provides high-torque operation compatible with Danfoss ICM 40 to ICM 150 valves.
- Equipped with an integrated LCD display for real-time valve position feedback and easy troubleshooting.
- Features multiple fail-safe setup options to maintain or move to a safe position during power loss.
- Ensures IP67/NEMA 6 protection for reliable performance in wash-down or high-humidity environments.
- Supports a wide ambient temperature range from -22°F to 122°F (-30°C to 50°C).
Is the Danfoss 027H9122 compatible with smaller ICM valves?
No, the ICAD 1200A is specifically sized for larger valves (DN 40-150). For smaller valves like the ICM 20, 25, or 32, use the ICAD 600A series.
Does this unit include the required power and control cables?
This specific model (027H9122) is supplied without cables. You will need to purchase the appropriate cable set (available in 1.5m, 3m, or 10m lengths) separately for installation.
What input signals does this actuator accept?
It is fully configurable for analog input (0/4-20 mA or 0/2-10 V) and digital inputs, making it compatible with most PLC and industrial controllers.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $6,731.46
-65%$6,731.46
$2,356.01Danfoss 027H9122 Actuator
The Danfoss 027H9122 Actuator (ICAD 1200A) is a high-performance electronic motor actuator engineered for precise control of motor-operated valves in industrial refrigeration systems. This unit utilizes advanced stepper motor technology to deliver accurate positioning for Danfoss ICM series valves, specifically larger sizes such as ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, and ICM 150. Designed for versatility, it supports modulating control via 4-20 mA or 0-10 V signals, as well as digital ON/OFF operation. The integration of an MMI display allows technicians to monitor the opening degree and adjust parameters directly on-site without external tools. The housing is rated at IP67, ensuring resilience against moisture and harsh ambient conditions typical in mechanical rooms. This specific configuration is provided without cables, allowing for custom field wiring or the reuse of existing compatible cable sets in retrofits.
Key Benefits:- Provides high-torque operation compatible with Danfoss ICM 40 to ICM 150 valves.
- Equipped with an integrated LCD display for real-time valve position feedback and easy troubleshooting.
- Features multiple fail-safe setup options to maintain or move to a safe position during power loss.
- Ensures IP67/NEMA 6 protection for reliable performance in wash-down or high-humidity environments.
- Supports a wide ambient temperature range from -22°F to 122°F (-30°C to 50°C).
Is the Danfoss 027H9122 compatible with smaller ICM valves?
No, the ICAD 1200A is specifically sized for larger valves (DN 40-150). For smaller valves like the ICM 20, 25, or 32, use the ICAD 600A series.
Does this unit include the required power and control cables?
This specific model (027H9122) is supplied without cables. You will need to purchase the appropriate cable set (available in 1.5m, 3m, or 10m lengths) separately for installation.
What input signals does this actuator accept?
It is fully configurable for analog input (0/4-20 mA or 0/2-10 V) and digital inputs, making it compatible with most PLC and industrial controllers.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
