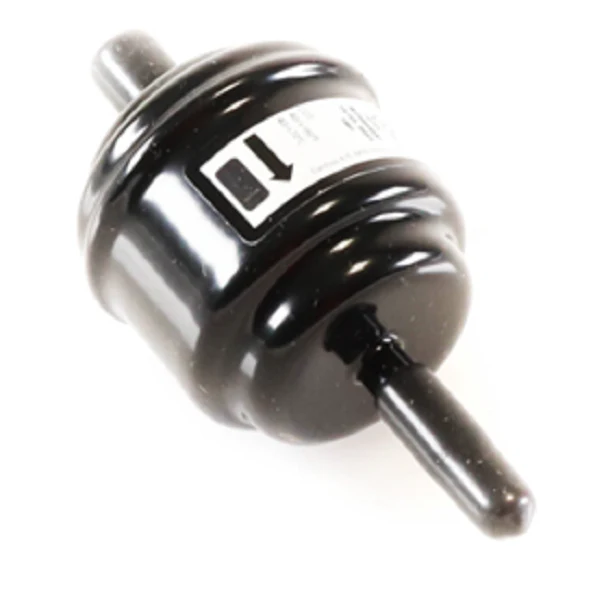

Danfoss 023Z8255 Filter Drier
The Danfoss 023Z8255 (DML 163) is a high-performance hermetic liquid line filter drier engineered for high-pressure systems utilizing HFC refrigerants and POE or PAG lubricants. Featuring a 100% molecular sieve core, this drier provides maximum moisture adsorption capacity, which is critical for protecting systems against acid formation and copper plating. Designed for a 3/8 inch flare connection, the DML series ensures a reliable seal in residential and commercial refrigeration applications. With a Maximum Working Pressure (MWP) of up to 46 bar (667 psig), it is fully compatible with R410A, R404A, and R134a systems. The solid core design minimizes pressure drop while providing superior solid particle filtration down to 25 µm. This helps maintain HVAC system efficiency and protects expansion valves from debris-related failures. For contractors, the corrosion-resistant powder-painted finish and compact 16 cubic inch housing make it a durable choice for both new installations and field repairs.
Key Benefits for Technicians:- Maximum Moisture Removal: The solid 100% molecular sieve core effectively captures water even at high liquid line temperatures.
- High Pressure Rating: Rated for MWP of 46 bar, making it suitable for modern high-pressure HFC systems like R410A.
- Optimized Filtration: Effectively removes dirt and metallic shavings to prevent clogging of the thermostatic expansion valve (TXV).
- Durable Construction: Features a corrosion-resistant finish that exceeds salt spray testing requirements for harsh environments.
- Broad Compatibility: Approved for use with a wide range of refrigerants including R32, R454B, and other A2L blends.
What is the difference between Danfoss DML and DCL filter driers?
The DML series, like the 023Z8255, features a 100% molecular sieve core optimized for moisture adsorption in HFC systems. The DCL series contains 20% activated alumina, which is better suited for removing acids in systems using HCFCs or mineral oils.
Can this filter drier be installed in any orientation?
Yes, it can be installed in any position, provided the flow arrow on the label points toward the expansion device. For liquid line applications, vertical installation with downward flow is often preferred to ensure consistent refrigerant contact with the core.
Is the Danfoss 023Z8255 compatible with R22?
While the molecular sieve will remove moisture from R22, it does not provide acid neutralization. For older R22 systems with mineral oil, a DCL series drier is generally recommended to handle potential acid buildup more effectively.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
