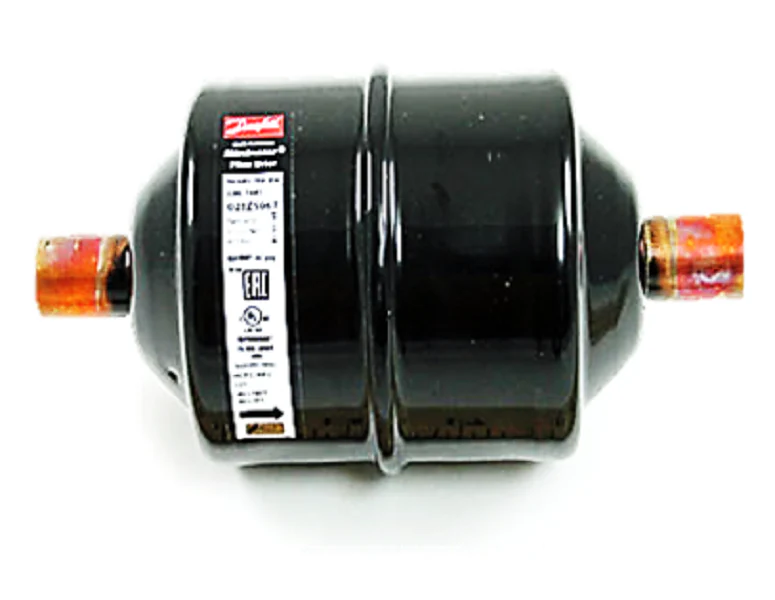

Danfoss 023Z5067 Filter Drier
The Danfoss 023Z5067 (ELIMINATOR Type DML 164S) is a high-performance liquid line filter drier engineered for refrigeration and air conditioning systems requiring maximum moisture removal. Featuring a 16 cubic inch solid core comprised of 100% molecular sieve desiccant, this model is specifically optimized for HFC refrigerants—including R410A, R134a, and R404A—and compatible with POE or PAG oils. The 1/2 inch ODF solder connections (copper-plated steel) ensure a secure, leak-free transition within the circuit. Designed as a hermetic solution, the DML 164S provides superior acid adsorption and protects the compressor from abrasive particles and moisture-induced hydrolysis. With a maximum working pressure of 667 psig (46 bar) and a wide operating temperature range of -40°F to 160°F, this Danfoss DML 164S filter drier meets the rigorous demands of commercial and industrial HVACR installations while maintaining a 25 µm filter retention for optimal system cleanliness.
Key Benefits for Technicians:- High Moisture Capacity: The 100% molecular sieve core provides the highest water adsorption, essential for high-pressure R410A systems.
- Oil Additive Protection: Contains no activated alumina, preventing the depletion of essential polyolester (POE) oil additives.
- Durable Construction: UL-approved steel shell with a corrosion-resistant powder-painted finish, rated for a 46 bar safe working pressure.
- Versatile Installation: 1/2" sweat connections allow for traditional brazing methods in any orientation relative to the flow arrow.
- Low Pressure Drop: Engineered internal flow design maintains system efficiency while capturing solid contaminants down to 25 microns.
What refrigerants are compatible with the DML 164S?
This unit is compatible with various HFC and HCFC refrigerants, specifically optimized for R410A, R134a, R404A, R507, R22, and R407C. It is safe for use with both HFC and flammable refrigerants like R290.
Can I use this drier on the suction line?
No, the 023Z5067 is a uniflow liquid line filter drier. For suction line protection or after a compressor burnout, a dedicated suction line drier with activated alumina (like the DCL series) is required.
Does this drier include a bracket or mounting hardware?
This is a standard hermetic drier and does not include an integrated bracket. It is typically supported by the 1/2" refrigerant piping itself once brazed into the system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
