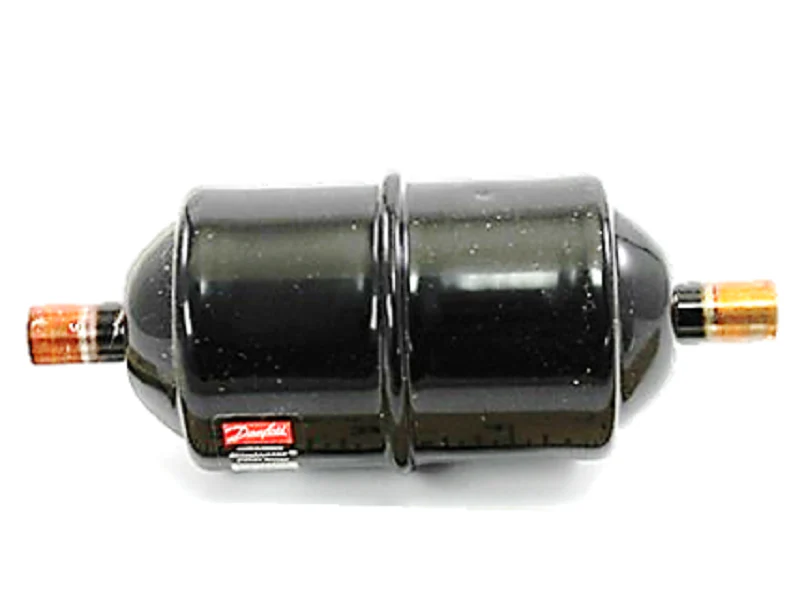

Danfoss 023Z5058 Filter Drier
The Danfoss 023Z5058 Filter Drier, specifically the DML 083S model, is a high-performance filter drier for HVACR systems utilizing HFC and HCFC refrigerants such as R-404A, R-134a, and R-407C. Featuring a 100% molecular sieve core, this drier provides maximum moisture absorption capacity while protecting against acid formation and system contaminants. The 3/8" solder (ODF) connection ensures a secure, leak-free fit for liquid line applications. Designed to withstand high pressures, this dual-flow compatible component is ideal for residential and light commercial heat pumps or air conditioning units. For contractors, the solid core construction prevents internal bypass, ensuring all refrigerant passes through the filtration media to maintain system efficiency. This liquid line filter drier is essential for preventing expansion valve freeze-ups and ensuring the longevity of your compressor in demanding environments.
- 100% Molecular Sieve core provides superior dehydration capacity even at high liquid temperatures.
- 3/8" ODF copper-plated steel connectors allow for quick, reliable brazing into the system.
- Compatible with POE and PAG oils, preventing additive depletion and oil breakdown.
- Rated for a Maximum Working Pressure (MWP) of 667 psig (46 bar), suitable for modern high-pressure refrigerants.
- High filtration capacity down to 25 µm ensures minimal pressure drop while capturing debris.
Common Installation and Compatibility Questions
Is the DML 083S compatible with R-410A systems?
Yes, this unit is rated for the high pressures associated with R-410A and is frequently used in residential split systems and heat pump applications.
Can I use this drier in a bidirectional flow configuration?
While designed primarily for liquid lines, ensure you check the flow arrow on the housing; if used in a heat pump, standard practice usually involves external check valves unless the drier is specifically designated as bi-flow.
What is the primary difference between the DML and DCL series?
The DML series uses a 100% molecular sieve for maximum moisture removal in HFC systems, whereas the DCL series contains activated alumina for acid adsorption in older HCFC systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
