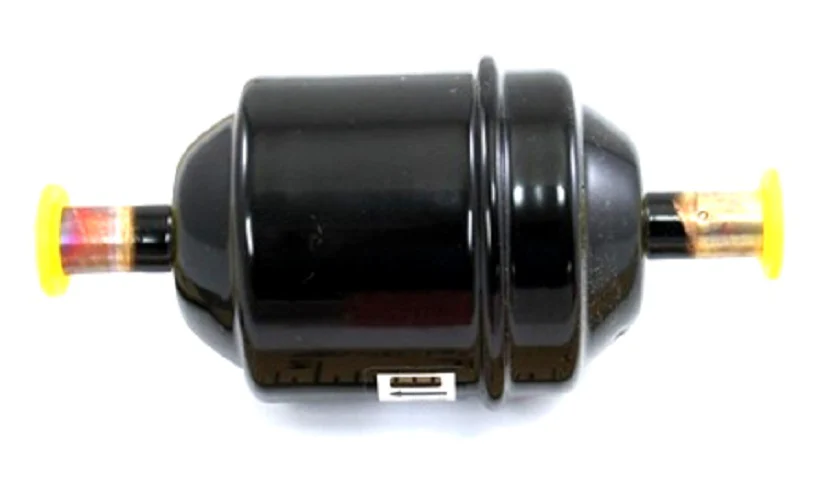

Danfoss 023Z5019 Filter Drier
Experience the performance of the Danfoss 023Z5019 liquid line filter drier, a critical component for maintaining system integrity in residential and commercial refrigeration. Specifically engineered for the 3/8 inch ODF sweat connection, this DCL 053S model features a high-density 5 cubic inch core. The specialized core composition consists of 80% molecular sieve and 20% activated alumina, making it the professional choice for technicians dealing with high condensing temperatures and potential acid formation. This hermetic filter drier effectively adsorbs moisture and captures harmful acids to prevent compressor failure and expansion valve blockage.
The Danfoss Eliminator 023Z5019 is compatible with a broad range of HCFC and HFC refrigerants, including R410A, R22, R134a, and R404A. Its powder-painted steel shell is rated for a maximum working pressure of 667 psig (46 bar), ensuring reliable operation in high-pressure environments. With a 25-micron internal filter, this unit provides high retention of solid particles while maintaining a minimal pressure drop across the liquid line. Ideal for proactive maintenance or emergency system repairs, the 023Z5019 ensures the long-term cleanliness of the refrigerant circuit.
Key Benefits for the Contractor:- Dual-Action Protection: Combines moisture removal with superior acid adsorption to protect sensitive system components from chemical corrosion.
- Universal Compatibility: Optimized for use with most modern refrigerants and mineral/alkyl benzene or POE/PAG oil blends.
- Rugged Construction: Durable steel body with a corrosion-resistant finish, suitable for harsh environments and marine applications.
- Leak-Free Integration: High-quality solid copper sweat connectors facilitate a fast, secure brazed installation.
- Optimized Flow: Large internal diameter minimizes liquid flow velocity and energy-robbing pressure drops.
- Is the Danfoss 023Z5019 compatible with R410A? Yes, the DCL series is fully rated for R410A systems and high-pressure R32 applications.
- Can this drier be installed in any orientation? It can be installed in any position, provided the central arrow aligns with the direction of the refrigerant flow.
- What is the difference between DML and DCL models? Unlike the 100% molecular sieve DML, this DCL model contains 20% activated alumina specifically for acid neutralization in systems where moisture has already caused acid formation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
