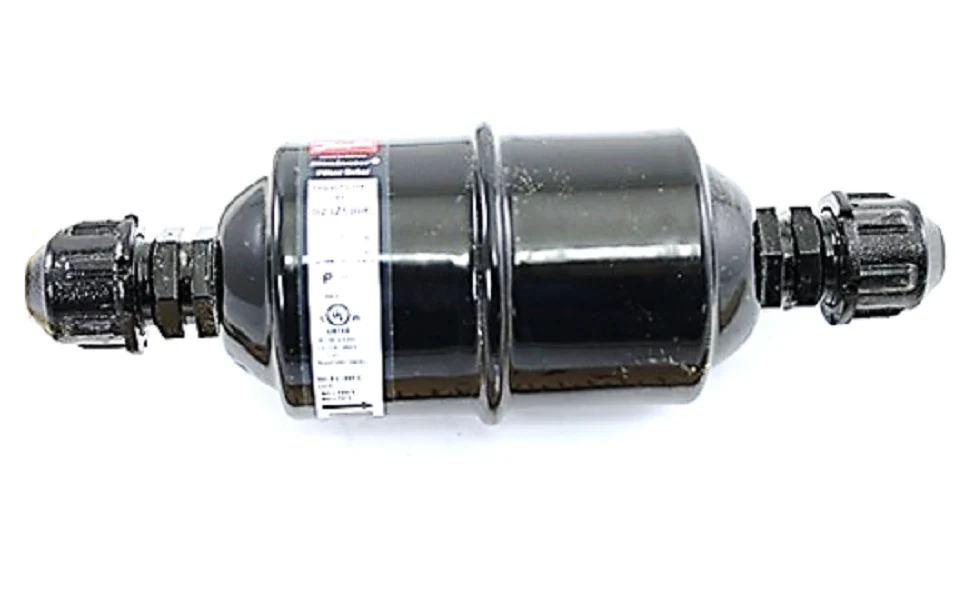

Danfoss 023Z5006 Filter Drier
The Danfoss 023Z5006 is a high-performance DCL-084 liquid line filter drier designed for effective moisture and acid removal in light commercial refrigeration and air conditioning systems. Engineered with a solid core consisting of 80% 3Å molecular sieve and 20% activated alumina, this unit is optimized for systems utilizing HFC and HCFC refrigerants and POE or PAG oils. The 1/2 inch flare (SAE) connections ensure a secure, leak-free mechanical joint during field installation. Rated for a maximum working pressure of 46 bar (667 psig), the DCL-084 handles high-pressure transients typical in R-410A or R-134a cycles. Its compact 8-cubic-inch volume provides significant dirt retention capacity without inducing excessive pressure drop, protecting thermal expansion valves and capillary tubes from debris. For technicians performing HVAC system maintenance or compressor replacements, this drier is a reliable standard for preventing copper plating and oil acid formation.
Technical Advantages- High Dehydration Capacity: The 3Å molecular sieve core maximizes water adsorption even at high liquid line temperatures.
- Acid Neutralization: Activated alumina effectively removes organic acids to prevent motor winding failure and system corrosion.
- Corrosion Resistance: The powder-painted finish provides a durable exterior coating suitable for harsh environments.
- Universal Compatibility: Fully compatible with modern refrigerants including R-404A, R-407C, and R-507.
- Minimal Pressure Drop: Optimized internal flow paths maintain high system efficiency and cooling capacity.
What is the difference between Danfoss DCL and DML driers?
The DCL series, including the 023Z5006, contains activated alumina for acid removal, making it ideal for systems after a minor burnout or for recovery. DML driers use 100% molecular sieve for maximum moisture adsorption only.
Can the 1/2" flare fittings be converted to ODF solder?
This specific model is designed for mechanical flare connections only. For brazed applications, the Danfoss ODF series should be selected to avoid damaging the internal core during heating.
Is the DCL-084 bi-directional?
No, this filter drier is a mono-flow component. Ensure the arrow on the label matches the direction of the refrigerant flow toward the expansion device.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $18.66
-65%$18.66
$6.53Danfoss 023Z5006 Filter Drier
The Danfoss 023Z5006 is a high-performance DCL-084 liquid line filter drier designed for effective moisture and acid removal in light commercial refrigeration and air conditioning systems. Engineered with a solid core consisting of 80% 3Å molecular sieve and 20% activated alumina, this unit is optimized for systems utilizing HFC and HCFC refrigerants and POE or PAG oils. The 1/2 inch flare (SAE) connections ensure a secure, leak-free mechanical joint during field installation. Rated for a maximum working pressure of 46 bar (667 psig), the DCL-084 handles high-pressure transients typical in R-410A or R-134a cycles. Its compact 8-cubic-inch volume provides significant dirt retention capacity without inducing excessive pressure drop, protecting thermal expansion valves and capillary tubes from debris. For technicians performing HVAC system maintenance or compressor replacements, this drier is a reliable standard for preventing copper plating and oil acid formation.
Technical Advantages- High Dehydration Capacity: The 3Å molecular sieve core maximizes water adsorption even at high liquid line temperatures.
- Acid Neutralization: Activated alumina effectively removes organic acids to prevent motor winding failure and system corrosion.
- Corrosion Resistance: The powder-painted finish provides a durable exterior coating suitable for harsh environments.
- Universal Compatibility: Fully compatible with modern refrigerants including R-404A, R-407C, and R-507.
- Minimal Pressure Drop: Optimized internal flow paths maintain high system efficiency and cooling capacity.
What is the difference between Danfoss DCL and DML driers?
The DCL series, including the 023Z5006, contains activated alumina for acid removal, making it ideal for systems after a minor burnout or for recovery. DML driers use 100% molecular sieve for maximum moisture adsorption only.
Can the 1/2" flare fittings be converted to ODF solder?
This specific model is designed for mechanical flare connections only. For brazed applications, the Danfoss ODF series should be selected to avoid damaging the internal core during heating.
Is the DCL-084 bi-directional?
No, this filter drier is a mono-flow component. Ensure the arrow on the label matches the direction of the refrigerant flow toward the expansion device.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
