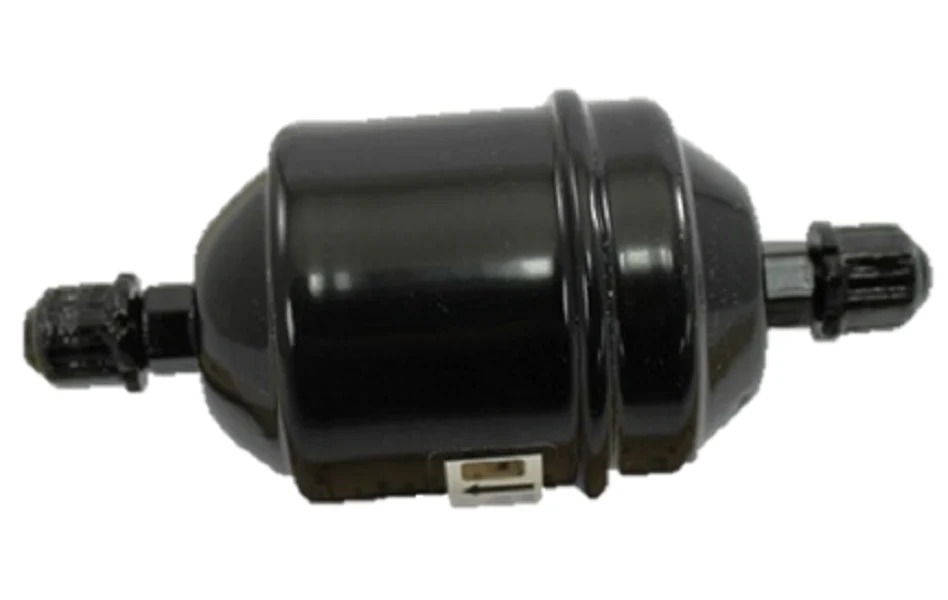

Danfoss 023Z5002 Filter Drier
The Danfoss 023Z5002 ELIMINATOR Type DCL 052 is a high-performance 1/4" liquid line filter drier engineered specifically for systems requiring moisture removal and acid adsorption. Utilizing a solid core composed of 80% molecular sieve and 20% activated alumina, this drier is the industry standard for protecting refrigeration and air conditioning circuits from harmful chemical reactions. The 5 cubic inch core effectively captures solid contaminants down to 25 μm while maintaining a minimal pressure drop, ensuring system efficiency under high condensing temperatures. This flare connection filter drier is optimized for use with HFC and HCFC refrigerants, including R410A, R404A, and R134a, and is fully compatible with POE, PAG, and mineral oils. Its robust, powder-painted steel shell is tested to withstand a 500-hour salt spray, providing exceptional corrosion resistance in demanding HVACR environments. Designed for 1/4 inch SAE flare fittings, the Danfoss DCL 052 offers a maximum working pressure of 667 psig (46 bar), making it a reliable choice for preventing compressor failure due to moisture-induced acid formation.
Key Benefits
- High Acid Adsorption: The 20% activated alumina core blend effectively neutralizes acids to protect the compressor and extend system life.
- Optimized Filtration: Capable of retaining particles as small as 25 μm with high dirt retention capacity and negligible pressure drop.
- Wide Refrigerant Compatibility: Designed for use with R410A, R404A, R134a, R22, and other common HCFC/HFC refrigerants.
- Durable Construction: Features a plasma-welded steel shell and powder-coated finish for superior durability in high-vibration and corrosive environments.
- Secure Connections: Equipped with premium 1/4" SAE flare connections for a reliable, leak-free seal during installation.
Common Questions
Is the Danfoss 023Z5002 compatible with POE oil?
Yes, the DCL 052 drier is fully optimized for HFC refrigerants and is compatible with both POE and PAG oils, as well as mineral and alkylbenzene lubricants.
What is the difference between Danfoss DML and DCL driers?
While the DML series uses a 100% molecular sieve for maximum water capacity, the DCL series (like this 023Z5002) includes activated alumina for acid adsorption, making it better suited for systems where acid formation is a primary concern.
Can this drier be used in both cooling and heating cycles?
The 023Z5002 is a flow-directional liquid line drier. For heat pump applications requiring bi-directional flow, a dedicated bi-flow filter drier (type DCB or DMB) should be utilized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $15.16
-65%$15.16
$5.31Danfoss 023Z5002 Filter Drier
The Danfoss 023Z5002 ELIMINATOR Type DCL 052 is a high-performance 1/4" liquid line filter drier engineered specifically for systems requiring moisture removal and acid adsorption. Utilizing a solid core composed of 80% molecular sieve and 20% activated alumina, this drier is the industry standard for protecting refrigeration and air conditioning circuits from harmful chemical reactions. The 5 cubic inch core effectively captures solid contaminants down to 25 μm while maintaining a minimal pressure drop, ensuring system efficiency under high condensing temperatures. This flare connection filter drier is optimized for use with HFC and HCFC refrigerants, including R410A, R404A, and R134a, and is fully compatible with POE, PAG, and mineral oils. Its robust, powder-painted steel shell is tested to withstand a 500-hour salt spray, providing exceptional corrosion resistance in demanding HVACR environments. Designed for 1/4 inch SAE flare fittings, the Danfoss DCL 052 offers a maximum working pressure of 667 psig (46 bar), making it a reliable choice for preventing compressor failure due to moisture-induced acid formation.
Key Benefits
- High Acid Adsorption: The 20% activated alumina core blend effectively neutralizes acids to protect the compressor and extend system life.
- Optimized Filtration: Capable of retaining particles as small as 25 μm with high dirt retention capacity and negligible pressure drop.
- Wide Refrigerant Compatibility: Designed for use with R410A, R404A, R134a, R22, and other common HCFC/HFC refrigerants.
- Durable Construction: Features a plasma-welded steel shell and powder-coated finish for superior durability in high-vibration and corrosive environments.
- Secure Connections: Equipped with premium 1/4" SAE flare connections for a reliable, leak-free seal during installation.
Common Questions
Is the Danfoss 023Z5002 compatible with POE oil?
Yes, the DCL 052 drier is fully optimized for HFC refrigerants and is compatible with both POE and PAG oils, as well as mineral and alkylbenzene lubricants.
What is the difference between Danfoss DML and DCL driers?
While the DML series uses a 100% molecular sieve for maximum water capacity, the DCL series (like this 023Z5002) includes activated alumina for acid adsorption, making it better suited for systems where acid formation is a primary concern.
Can this drier be used in both cooling and heating cycles?
The 023Z5002 is a flow-directional liquid line drier. For heat pump applications requiring bi-directional flow, a dedicated bi-flow filter drier (type DCB or DMB) should be utilized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Danfoss 023Z5002 ELIMINATOR Type DCL 052 is a high-performance 1/4" liquid line filter drier engineered specifically for systems requiring moisture removal and acid adsorption. Utilizing a solid core composed of 80% molecular sieve and 20% activated alumina, this drier is the industry standard for protecting refrigeration and air conditioning circuits from harmful chemical reactions. The 5 cubic inch core effectively captures solid contaminants down to 25 μm while maintaining a minimal pressure drop, ensuring system efficiency under high condensing temperatures. This flare connection filter drier is optimized for use with HFC and HCFC refrigerants, including R410A, R404A, and R134a, and is fully compatible with POE, PAG, and mineral oils. Its robust, powder-painted steel shell is tested to withstand a 500-hour salt spray, providing exceptional corrosion resistance in demanding HVACR environments. Designed for 1/4 inch SAE flare fittings, the Danfoss DCL 052 offers a maximum working pressure of 667 psig (46 bar), making it a reliable choice for preventing compressor failure due to moisture-induced acid formation.
Key Benefits
- High Acid Adsorption: The 20% activated alumina core blend effectively neutralizes acids to protect the compressor and extend system life.
- Optimized Filtration: Capable of retaining particles as small as 25 μm with high dirt retention capacity and negligible pressure drop.
- Wide Refrigerant Compatibility: Designed for use with R410A, R404A, R134a, R22, and other common HCFC/HFC refrigerants.
- Durable Construction: Features a plasma-welded steel shell and powder-coated finish for superior durability in high-vibration and corrosive environments.
- Secure Connections: Equipped with premium 1/4" SAE flare connections for a reliable, leak-free seal during installation.
Common Questions
Is the Danfoss 023Z5002 compatible with POE oil?
Yes, the DCL 052 drier is fully optimized for HFC refrigerants and is compatible with both POE and PAG oils, as well as mineral and alkylbenzene lubricants.
What is the difference between Danfoss DML and DCL driers?
While the DML series uses a 100% molecular sieve for maximum water capacity, the DCL series (like this 023Z5002) includes activated alumina for acid adsorption, making it better suited for systems where acid formation is a primary concern.
Can this drier be used in both cooling and heating cycles?
The 023Z5002 is a flow-directional liquid line drier. For heat pump applications requiring bi-directional flow, a dedicated bi-flow filter drier (type DCB or DMB) should be utilized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
