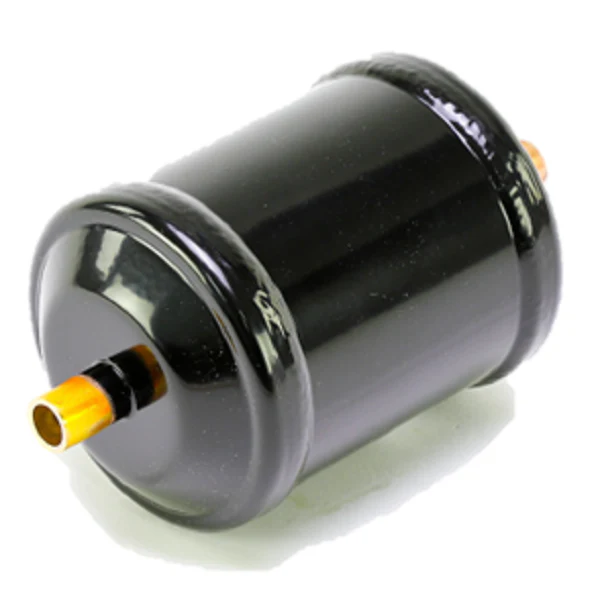

Danfoss 023Z1437 Filter Drier
The Danfoss 023Z1437 Filter Drier is a high-performance DCB 163S bi-flow filter drier engineered specifically for heat pump applications. Built with a 16 cubic inch solid core composed of 80% molecular sieve and 20% activated alumina, this unit provides exceptional moisture and acid adsorption in liquid lines. The 3/8" ODF solder connections are made of solid copper, facilitating quick installation while reducing potential leak points in reversible systems. Designed for use with HCFC and HFC refrigerants such as R410A, R407C, and R134a, it features integrated check valves that ensure refrigerant always flows from the outer side of the core to the center, regardless of direction. This maintains filtration efficiency and prevents dirt release during cycle reversals. With a maximum working pressure of 667 psig (46 bar) and a temperature range of -40°F to 160°F, the ELIMINATOR hermetic design ensures long-term system protection against contaminants and hydrolysis.
Key Benefits- Optimized for Heat Pumps: Eliminates the need for multiple external check valves by utilizing a built-in internal flow management system.
- Advanced Contaminant Capture: The 20% activated alumina core effectively neutralizes inorganic acids to protect compressor life.
- Robust Construction: UL-approved steel shell with copper-plated steel or solid copper ODF connections for high-pressure durability.
- Refrigerant Versatility: Fully compatible with R410A, R404A, R507, and R290, making it a versatile HVAC substitution for many 1.5-2 ton systems.
- What is the difference between Danfoss DMB and DCB models? DCB models like the 023Z1437 contain 20% activated alumina for acid removal, whereas DMB models feature 100% molecular sieve for systems focusing purely on moisture.
- Can this filter drier be installed in any orientation? While it is bi-directional, it should be installed in the liquid line according to standard HVAC best practices to ensure proper oil return and filtration.
- Is this unit compatible with POE oil? Yes, the Danfoss 023Z1437 is designed to work with both mineral and polyolester (POE) lubricants.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
