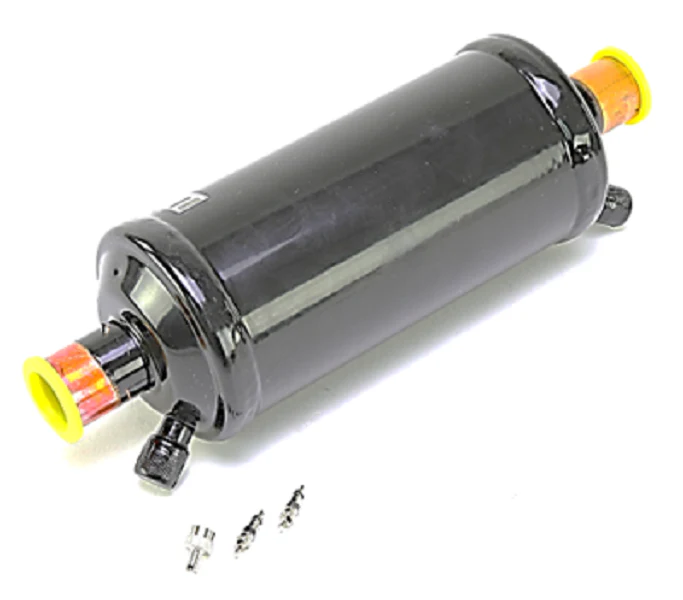

Danfoss 023Z1015 Filter Drier
For technical cleanup after a compressor failure, the Danfoss 023Z1015 (DAS 307S) Burnout Filter Drier is a critical component for system restoration. This 7/8" ODF solder connection unit is specifically engineered for suction line installation, where it functions as a high-capacity scavenger for moisture and harmful acids. The internal solid core is comprised of a 70% activated alumina and 30% molecular sieve blend, providing 1.987 liters of volume and an acid capacity of 17.29 grams. This specific desiccant ratio is optimized to neutralize hydrochloric and hydrofluoric acids before they can attack the insulation of a new compressor. With a maximum working pressure of 500 psig (35 bar) and a wide temperature range of -40°F to 160°F, it maintains a low pressure drop across high-velocity vapor lines. Veteran technicians use the DAS 307S to ensure HVAC system cleanup is thorough, preventing repeat motor failures by trapping carbon deposits and sludge in the suction stream.
Key Benefits- Dual-Action Filtration: Specifically designed for compressor burnout cleanup by combining 70% activated alumina for acid removal and 30% molecular sieve for moisture adsorption.
- High Flow Capacity: Large 30 cu. in. solid core filter drier design ensures minimal pressure drop in suction lines across refrigerants like R410A, R407C, and R134a.
- Corrosion Resistance: Rugged steel shell with copper ODF connections allows for reliable brazing and long-term durability in demanding HVACR environments.
- Precision Protection: Engineered to trap particulates, sludge, and carbonized oil, preventing contaminants from reaching the compressor's vital internal components.
When should the 023Z1015 be removed from the system?
Standard protocol for suction line filter drier use after a burnout indicates monitoring the pressure drop. It is typically removed or replaced once the system is clean and the pressure differential stays within manufacturer specs, usually after 48 to 72 hours of operation.
Is this compatible with POE and Mineral oils?
Yes, the DAS series core is compatible with both HFC and HCFC refrigerants and their corresponding lubricants, making it a versatile choice for various refrigeration filter drier applications.
Can this be used on the liquid line?
While technically possible, this is a burnout filter drier optimized for suction line service. For standard moisture protection on the liquid line, a dedicated DML or DCL series unit is recommended to avoid unnecessary pressure restrictions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
