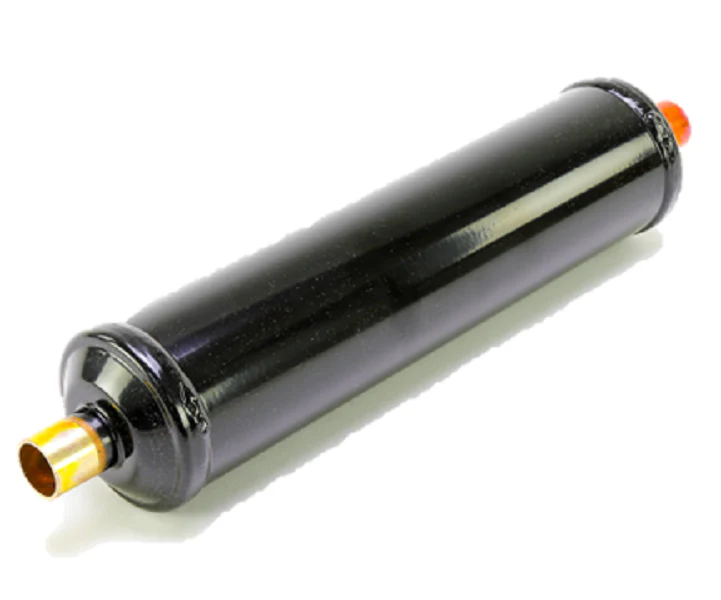

Danfoss 023Z0036 Filter Drier
The Danfoss 023Z0036 (DCL 607S) is a high-capacity eliminator liquid line filter drier engineered for heavy-duty protection in commercial refrigeration and air conditioning systems. This unit features a 60 cubic inch solid core composed of 80% molecular sieve and 20% activated alumina, making it the ideal choice for systems requiring both moisture removal and acid adsorption. With its 7/8" ODF solder (copper-plated steel) connections, it ensures a leak-proof, hermetic seal in high-pressure environments, maintaining a maximum working pressure of 667 psig (46 bar).
Designed for compatibility with a wide range of HFC and HCFC refrigerants including R410A, R404A, and R134a, this drier effectively traps solid particles down to 25 μm while causing minimal pressure drop across the liquid line. The corrosion-resistant powder-painted finish and UL-approved construction provide long-term durability against harsh environmental conditions. For technicians, the one-way flow design—clearly marked by a printed arrow—simplifies installation and ensures optimal system performance and compressor safety by neutralizing moisture-induced hydrolysis.
Key Benefits:- High Moisture Removal: 80% molecular sieve core provides superior drying capacity across various temperature ranges.
- Acid Neutralization: Integrated 20% activated alumina effectively adsorbs acids to prevent system burnout and copper plating.
- Durable Solder Connections: Features 7/8" copper-plated steel ODF connectors for reliable brazing without the risk of fitting failure.
- Solid Particle Filtration: Internal felt pad and mesh filter solid contaminants down to 25 microns to protect expansion valves.
- Wide Refrigerant Compatibility: Fully optimized for use with R410A, R134a, R404A, R507, and R22 with POE or PAG oils.
- Can the 023Z0036 be used with A2L refrigerants? This model is specifically designed for HFC and HCFC refrigerants; for A2L applications, refer to the DMLE/DCLE specialized series.
- What is the difference between DML and DCL cores? While DML cores are 100% molecular sieve for moisture, this DCL core includes activated alumina for essential acid removal.
- What is the maximum pressure rating for this filter drier? The hermetic shell is PED approved for a safe working pressure of 46 bar (667 psig).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $85.34
-65%$85.34
$29.87Danfoss 023Z0036 Filter Drier
The Danfoss 023Z0036 (DCL 607S) is a high-capacity eliminator liquid line filter drier engineered for heavy-duty protection in commercial refrigeration and air conditioning systems. This unit features a 60 cubic inch solid core composed of 80% molecular sieve and 20% activated alumina, making it the ideal choice for systems requiring both moisture removal and acid adsorption. With its 7/8" ODF solder (copper-plated steel) connections, it ensures a leak-proof, hermetic seal in high-pressure environments, maintaining a maximum working pressure of 667 psig (46 bar).
Designed for compatibility with a wide range of HFC and HCFC refrigerants including R410A, R404A, and R134a, this drier effectively traps solid particles down to 25 μm while causing minimal pressure drop across the liquid line. The corrosion-resistant powder-painted finish and UL-approved construction provide long-term durability against harsh environmental conditions. For technicians, the one-way flow design—clearly marked by a printed arrow—simplifies installation and ensures optimal system performance and compressor safety by neutralizing moisture-induced hydrolysis.
Key Benefits:- High Moisture Removal: 80% molecular sieve core provides superior drying capacity across various temperature ranges.
- Acid Neutralization: Integrated 20% activated alumina effectively adsorbs acids to prevent system burnout and copper plating.
- Durable Solder Connections: Features 7/8" copper-plated steel ODF connectors for reliable brazing without the risk of fitting failure.
- Solid Particle Filtration: Internal felt pad and mesh filter solid contaminants down to 25 microns to protect expansion valves.
- Wide Refrigerant Compatibility: Fully optimized for use with R410A, R134a, R404A, R507, and R22 with POE or PAG oils.
- Can the 023Z0036 be used with A2L refrigerants? This model is specifically designed for HFC and HCFC refrigerants; for A2L applications, refer to the DMLE/DCLE specialized series.
- What is the difference between DML and DCL cores? While DML cores are 100% molecular sieve for moisture, this DCL core includes activated alumina for essential acid removal.
- What is the maximum pressure rating for this filter drier? The hermetic shell is PED approved for a safe working pressure of 46 bar (667 psig).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
