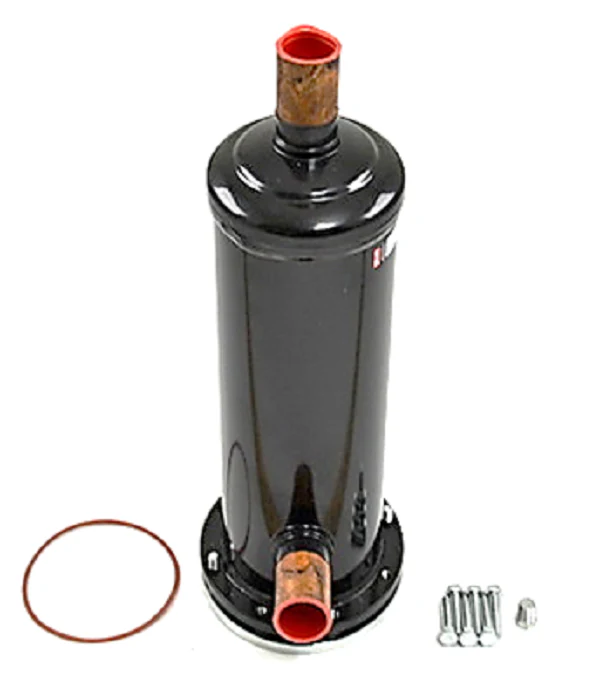

Danfoss 023U7261 Filter Drier
The Danfoss 023U7261 Filter Drier is a heavy-duty DCR 09611s refrigerant shell designed for high-capacity liquid and suction line applications. Engineered for the rigors of commercial refrigeration and air conditioning, this 1 3/8" ODF unit features a robust steel body with a corrosion-resistant powder-paint finish. It is a dual-core refrigerant filter drier shell that utilizes the ELIMINATOR replaceable core system, allowing for flexible configuration based on the specific needs of the circuit, whether you require moisture removal, acid adsorption after a compressor burnout, or mechanical particle filtration. With a maximum working pressure of 667 psig (46 bar), it is fully compatible with high-pressure refrigerants like R410A, as well as R134a, R404A, and R507. This 96 cubic inch capacity shell ensures low pressure drop while maintaining high dirt retention, providing essential protection for thermal expansion valves and compressors in large-scale HVACR systems.
Key Benefits- Dual-Core Capacity: The Danfoss 023U7261 holds two 48-cubic inch cores, doubling the filtration surface area for superior system protection.
- High Pressure Rating: Rated for up to 667 PSI, making it suitable for modern high-pressure R410A systems.
- Solder ODF Connections: Features 1 3/8 inch copper connections for secure, leak-free brazing into the main line.
- Versatile Application: Compatible with various Danfoss ELIMINATOR cores, including 48-DM, 48-DC, 48-DA, and 48-F strainers.
- Serviceable Design: The replaceable core architecture allows for fast maintenance without requiring the replacement of the entire shell.
What is the core capacity of the Danfoss 023U7261?
This shell is a 96 cubic inch model designed to house two standard 48 cubic inch cores, providing high moisture and acid adsorption capacity.
Which refrigerants are compatible with this DCR shell?
The steel housing and copper connections are compatible with all common HCFC and HFC refrigerants, including R410A, R134a, R404A, R507, and R22.
Can this be used on the suction side for burnout cleanup?
Yes, when fitted with 48-DA burnout cores, this 1 3/8" shell is highly effective for removing acid and contaminants following a motor burnout.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $318.42
-65%$318.42
$111.45Danfoss 023U7261 Filter Drier
The Danfoss 023U7261 Filter Drier is a heavy-duty DCR 09611s refrigerant shell designed for high-capacity liquid and suction line applications. Engineered for the rigors of commercial refrigeration and air conditioning, this 1 3/8" ODF unit features a robust steel body with a corrosion-resistant powder-paint finish. It is a dual-core refrigerant filter drier shell that utilizes the ELIMINATOR replaceable core system, allowing for flexible configuration based on the specific needs of the circuit, whether you require moisture removal, acid adsorption after a compressor burnout, or mechanical particle filtration. With a maximum working pressure of 667 psig (46 bar), it is fully compatible with high-pressure refrigerants like R410A, as well as R134a, R404A, and R507. This 96 cubic inch capacity shell ensures low pressure drop while maintaining high dirt retention, providing essential protection for thermal expansion valves and compressors in large-scale HVACR systems.
Key Benefits- Dual-Core Capacity: The Danfoss 023U7261 holds two 48-cubic inch cores, doubling the filtration surface area for superior system protection.
- High Pressure Rating: Rated for up to 667 PSI, making it suitable for modern high-pressure R410A systems.
- Solder ODF Connections: Features 1 3/8 inch copper connections for secure, leak-free brazing into the main line.
- Versatile Application: Compatible with various Danfoss ELIMINATOR cores, including 48-DM, 48-DC, 48-DA, and 48-F strainers.
- Serviceable Design: The replaceable core architecture allows for fast maintenance without requiring the replacement of the entire shell.
What is the core capacity of the Danfoss 023U7261?
This shell is a 96 cubic inch model designed to house two standard 48 cubic inch cores, providing high moisture and acid adsorption capacity.
Which refrigerants are compatible with this DCR shell?
The steel housing and copper connections are compatible with all common HCFC and HFC refrigerants, including R410A, R134a, R404A, R507, and R22.
Can this be used on the suction side for burnout cleanup?
Yes, when fitted with 48-DA burnout cores, this 1 3/8" shell is highly effective for removing acid and contaminants following a motor burnout.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
