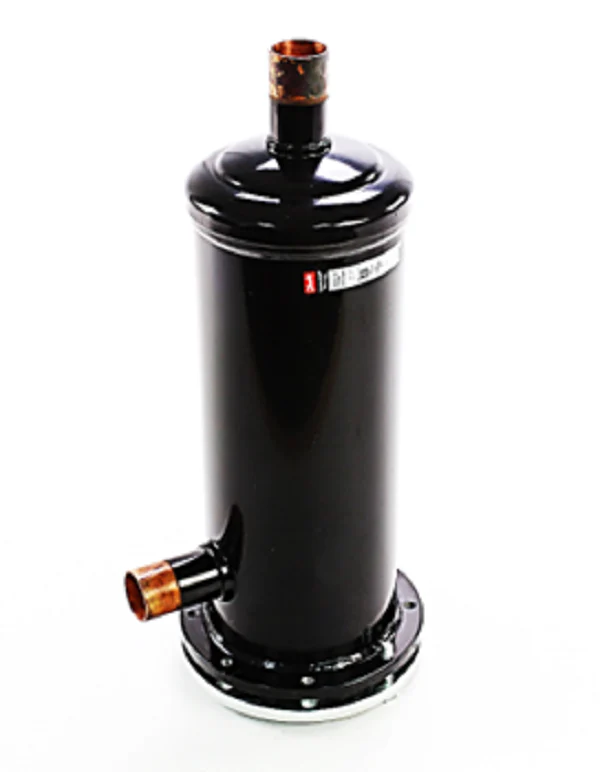

Danfoss 023U7260 Filter Drier
The Danfoss 023U7260 is a heavy-duty DCR-0489 Filter Drier shell engineered for high-capacity moisture and acid removal in commercial refrigeration and air conditioning systems. This model features 1 1/8" ODF solder connections and is specifically designed to accommodate two replaceable solid cores (96 cu. in. total), providing incredible flexibility for suction line or liquid line applications. Built with a robust steel housing and a corrosion-resistant powder-coat finish, the Danfoss Eliminator 023U7260 maintains structural integrity under a maximum working pressure of 667 psig (46 bar). This shell-only assembly is highly effective at protecting compressors from contaminants, utilizing a high-retention filter mat that captures 90% of particles down to 25 microns. Whether you are performing a burnout cleanup with DA cores or standard moisture removal with DM cores, this replaceable core filter drier ensures professional-grade protection and low pressure drop across a wide range of fluorinated refrigerants including R410A, R134a, and R404A.
Key Benefits- Dual Core Capacity: Dual 48 cu. in. core design (96 cu. in. total) allows for maximum adsorption for large-scale systems.
- System Versatility: Compatible with 48-DM, 48-DC, 48-DA, and 48-F inserts for tailored moisture, acid, or debris filtration.
- Durable Construction: Steel body with phosphate pre-treatment and 100-micron powder paint for superior corrosion resistance.
- High Pressure Rating: Safely operates in high-pressure R410A and CO2 systems with a 46 bar rating.
- Precise Fit: 1 1/8 inch copper ODF solder connections ensure secure, leak-free integration into the refrigeration circuit.
Does this unit include the filter cores?
No, the 023U7260 is a shell-only assembly. You must purchase the appropriate 48-series cores separately based on your specific system requirements (e.g., moisture removal vs. acid cleanup).
Can this shell be used in both suction and liquid lines?
Yes, the DCR series is designed for both liquid and suction line service. When used in the suction line, it is particularly effective for protecting the compressor after a system burnout.
What is the maximum pressure for this drier shell?
This shell is rated for a maximum working pressure of 667 psig (46 bar), making it suitable for modern high-pressure refrigerants like R410A.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
