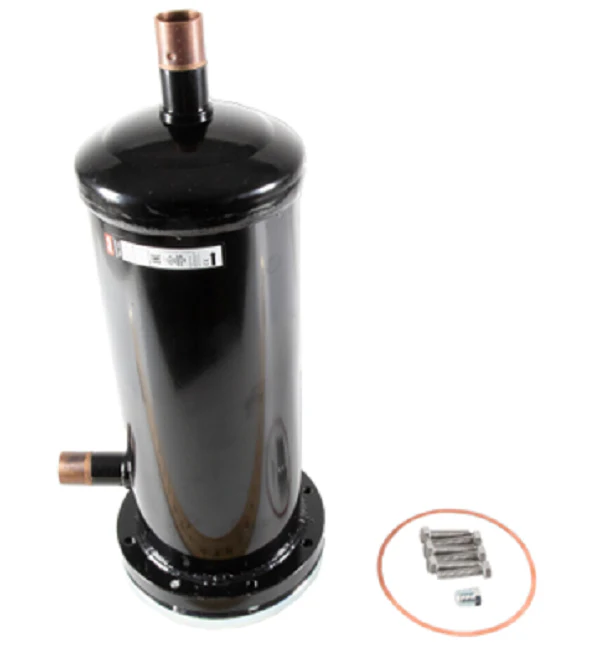

Danfoss 023U7258 Filter Drier
The Danfoss 023U7258 DCR-0487 is a high-capacity liquid line filter drier shell designed for demanding commercial refrigeration and HVAC system maintenance. Engineered with 7/8" ODF solder connections, this solid core filter drier housing provides exceptional moisture removal and acid neutralization capabilities when paired with compatible 48 cubic inch cores. Its carbon steel construction and high-pressure rating make it a reliable choice for CFC, HCFC, and HFC refrigerant applications, ensuring system longevity by preventing debris from reaching the expansion valve. For technicians performing compressor burn-out cleanup or routine refrigerant filtration, the DCR series offers a service-friendly design with a removable end cover for rapid core replacement. This industrial-grade filtration shell is built to withstand high vibration and pulsation, maintaining structural integrity across wide temperature ranges in commercial cooling units.
- Universal Application: Scalable filtration capacity compatible with DM, DC, DA, or DB cores depending on system requirements.
- Corrosion Resistance: High-grade epoxy coating protects the shell in harsh commercial environments.
- Precision Sealing: Optimized gasket design ensures leak-free performance under high discharge pressure conditions.
- Ease of Service: Top-access flange allows for fast internal inspection and HVAC part replacement without cutting the line.
Common Questions
What is the maximum operating pressure for the Danfoss 023U7258?
This shell is rated for a Maximum Working Pressure (MWP) of 667 psig (46 bar), making it suitable for most high-pressure HFC refrigerants.
Which core types can be used with this 7/8" filter drier shell?
The unit accepts standard 48-cubic inch cores, including molecular sieve options for moisture absorption or felt gaskets for suction line filtration.
Is the DCR-0487 shell compatible with R-410A systems?
Yes, the technical specifications and pressure ratings meet the requirements for R-410A refrigeration and high-pressure heat pump sets.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $318.42
-65%$318.42
$111.45Danfoss 023U7258 Filter Drier
The Danfoss 023U7258 DCR-0487 is a high-capacity liquid line filter drier shell designed for demanding commercial refrigeration and HVAC system maintenance. Engineered with 7/8" ODF solder connections, this solid core filter drier housing provides exceptional moisture removal and acid neutralization capabilities when paired with compatible 48 cubic inch cores. Its carbon steel construction and high-pressure rating make it a reliable choice for CFC, HCFC, and HFC refrigerant applications, ensuring system longevity by preventing debris from reaching the expansion valve. For technicians performing compressor burn-out cleanup or routine refrigerant filtration, the DCR series offers a service-friendly design with a removable end cover for rapid core replacement. This industrial-grade filtration shell is built to withstand high vibration and pulsation, maintaining structural integrity across wide temperature ranges in commercial cooling units.
- Universal Application: Scalable filtration capacity compatible with DM, DC, DA, or DB cores depending on system requirements.
- Corrosion Resistance: High-grade epoxy coating protects the shell in harsh commercial environments.
- Precision Sealing: Optimized gasket design ensures leak-free performance under high discharge pressure conditions.
- Ease of Service: Top-access flange allows for fast internal inspection and HVAC part replacement without cutting the line.
Common Questions
What is the maximum operating pressure for the Danfoss 023U7258?
This shell is rated for a Maximum Working Pressure (MWP) of 667 psig (46 bar), making it suitable for most high-pressure HFC refrigerants.
Which core types can be used with this 7/8" filter drier shell?
The unit accepts standard 48-cubic inch cores, including molecular sieve options for moisture absorption or felt gaskets for suction line filtration.
Is the DCR-0487 shell compatible with R-410A systems?
Yes, the technical specifications and pressure ratings meet the requirements for R-410A refrigeration and high-pressure heat pump sets.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
