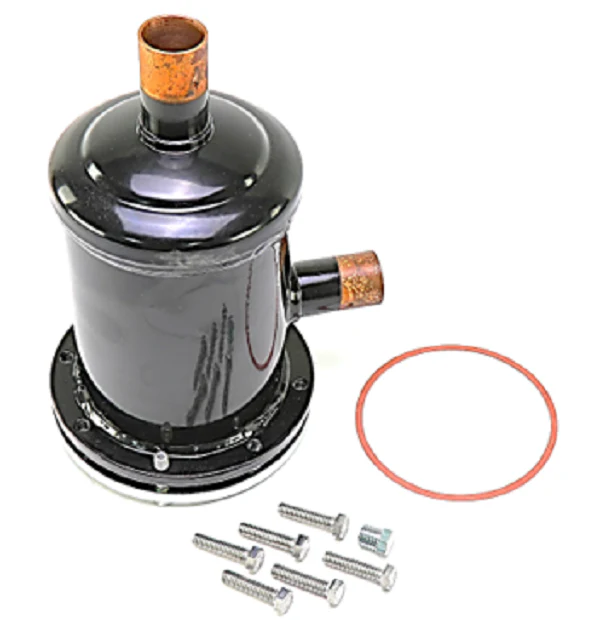

Danfoss 023U7253 Filter Drier
For high-capacity liquid or suction line applications, the Danfoss 023U7253 Filter Drier (Type DCR 0489s) provides the high-performance filtration required to maintain system integrity. This replaceable solid core filter drier shell is engineered for versatile use in refrigeration and air conditioning systems, specifically designed with 1-1/8" ODF solder connections for efficient brazing. It serves as a direct, high-spec replacement for KH28ED200, ensuring zero-gap compatibility for field service repairs. Built for durability, the ELIMINATOR DCR housing features a steel construction with a corrosion-resistant powder finish and is rated for a maximum operating pressure of 46 bar (667 psig). This shell accommodates a single 48 cubic inch core, allowing technicians to customize the system protection for acid removal, moisture adsorption, or suction line burnout cleanup depending on the core selected. Its wide temperature range of -40°F to 160°F makes it ideal for R410A, R404A, and R134a systems operating in demanding environments.
Key Benefits for Technicians- Universal Compatibility: Fully compatible with major HCFC, HFC, and oil-free refrigerants including R410A and R134a.
- Field Service Efficiency: Direct cross-reference for KH28ED200, eliminating the need for line modifications during installation.
- Robust Protection: Heavy-duty steel shell and zinc-chromated top covers are designed to withstand high pressure surges and vibration.
- Removable Core Design: Allows for quick replaceable core swaps (Type 48-DM, 48-DC, 48-DA, or 48-F) to address specific system contaminants.
- Superior Sealing: Features high-quality gasket kits and chrome-plated bolts to ensure a leak-free seal under extreme thermal cycling.
Is the filter core included with the 023U7253 shell?
No, this is a shell-less core model. You must purchase the 48-series core separately based on whether you need standard moisture removal, acid adsorption, or suction line filtration.
What is the maximum working pressure for this drier?
The Danfoss DCR 0489s housing is rated for a Maximum Working Pressure (MWP) of 667 psig (46 bar), making it suitable for high-pressure R410A applications.
Can this be used on both liquid and suction lines?
Yes, the 023U7253 is designed for flexibility and can be installed in both liquid line and suction line configurations to protect the compressor from moisture and solid particles.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
