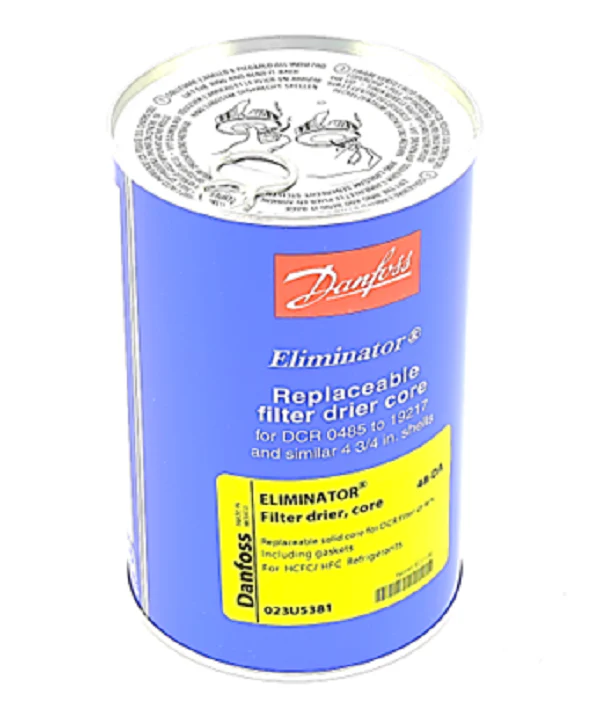

Danfoss 023U5381 Solid Core
Protect your refrigeration or air conditioning system after a compressor failure with the Danfoss 023U5381 Solid Core. Specifically engineered for acid absorption, this 48-DA burnout core features a high-performance blend of 70% activated alumina and 30% molecular sieve. This technical composition allows for 0.877 oz (24.85 g) of acid capacity, ensuring the effective neutralization of harmful contaminants often left behind after a burnout.
Designed for use in Danfoss DCR filter drier shells, this 48 cubic inch solid core provides exceptional suction or liquid line protection. The uniform grain size is optimized to maintain a low pressure drop while providing a filtration surface area of 95 in². Compatible with a wide range of refrigerants including R410A, R134a, R404A, and R22, as well as oil-free systems, the Danfoss 48-DA core includes the necessary gaskets for a secure seal. This robust filter drier insert is built to withstand pressure surges and vibration in demanding industrial and commercial HVACR applications.
Key Benefits for Technicians:- Maximum Acid Retention: Contains 70% activated alumina to effectively neutralize acidic byproducts following a compressor burnout.
- Wide Refrigerant Compatibility: Suitable for modern high-pressure refrigerants like R410A and older HCFC systems.
- Optimized Flow: Engineered with a uniform grain size to ensure effective dirt removal without causing significant pressure drops across the core.
- Full Installation Kit: Ships with one 023U0743 gasket and two 633L5312 felt gaskets for immediate replacement in DCR filter shells.
- Is the 48-DA core suitable for standard moisture removal? While it provides moisture adsorption, its primary function is acid neutralization. For high moisture capacity, consider the 48-DC or 48-DM series.
- Can this be used in both liquid and suction lines? Yes, the Danfoss 023U5381 is designed for both line types in refrigeration and air conditioning systems.
- How do I ensure proper orientation during installation? Ensure the inner taper of the 48-DA core faces the filter outlet as per Danfoss technical guidelines.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
