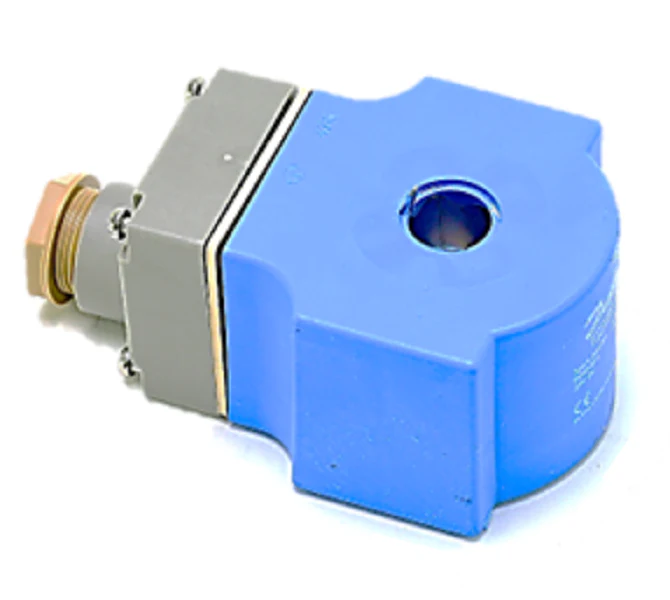

Danfoss 018Z6964 Coil
The Danfoss 018Z6964 Coil is a heavy-duty 24VDC 14W solenoid coil engineered for precise fluid control in commercial refrigeration and HVAC systems. As a veteran-grade Type BN024D actuator, this component features a terminal box electrical connection with a Pg 13.5 screwed cable entry, designed to accommodate conductor areas between 0.75 and 1.5 mm². Built for reliability in demanding environments, the coil is rated for an ambient temperature range of -40°F to 120°F and utilizes Class H winding insulation to maintain performance under continuous duty cycles. This 13.5 mm actuator size coil is often paired with Danfoss EVR solenoid valves, providing the necessary electromagnetic force to actuate valve stems without mechanical failure. The IP00 enclosure rating and robust 14W power consumption make it a standard choice for technicians requiring consistent refrigeration solenoid valve operation. Integrated click-on mounting technology allows for rapid field replacement, ensuring minimal downtime for critical cooling infrastructure.
Key Benefits:- High-temp durability: Class H insulation ensures stable operation in high-heat mechanical rooms.
- Field-ready installation: The terminal box design simplifies wiring for 24VDC control circuits.
- Standardized compatibility: Direct fit for Danfoss EVR, EVRA, and EVRB valve series.
- Reliable actuation: 14W power rating provides maximum opening differential pressure (MOPD) performance up to 21 bar.
- Continuous duty rating: Designed for constant energization in 24/7 industrial cooling applications.
- What valves are compatible with the 018Z6964? This coil is specifically designed for Danfoss solenoid valves with a 13.5 mm armature, including the EVR 2 through EVR 40 range.
- Does this coil support AC voltage? No, this is a dedicated 24VDC unit. Using AC voltage will cause immediate coil burnout.
- Can the coil be replaced without opening the system? Yes, the snap-on design allows for "hot swaps" of the electrical coil without regaining or discharging refrigerant.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $84.03
-65%$84.03
$29.41Danfoss 018Z6964 Coil
The Danfoss 018Z6964 Coil is a heavy-duty 24VDC 14W solenoid coil engineered for precise fluid control in commercial refrigeration and HVAC systems. As a veteran-grade Type BN024D actuator, this component features a terminal box electrical connection with a Pg 13.5 screwed cable entry, designed to accommodate conductor areas between 0.75 and 1.5 mm². Built for reliability in demanding environments, the coil is rated for an ambient temperature range of -40°F to 120°F and utilizes Class H winding insulation to maintain performance under continuous duty cycles. This 13.5 mm actuator size coil is often paired with Danfoss EVR solenoid valves, providing the necessary electromagnetic force to actuate valve stems without mechanical failure. The IP00 enclosure rating and robust 14W power consumption make it a standard choice for technicians requiring consistent refrigeration solenoid valve operation. Integrated click-on mounting technology allows for rapid field replacement, ensuring minimal downtime for critical cooling infrastructure.
Key Benefits:- High-temp durability: Class H insulation ensures stable operation in high-heat mechanical rooms.
- Field-ready installation: The terminal box design simplifies wiring for 24VDC control circuits.
- Standardized compatibility: Direct fit for Danfoss EVR, EVRA, and EVRB valve series.
- Reliable actuation: 14W power rating provides maximum opening differential pressure (MOPD) performance up to 21 bar.
- Continuous duty rating: Designed for constant energization in 24/7 industrial cooling applications.
- What valves are compatible with the 018Z6964? This coil is specifically designed for Danfoss solenoid valves with a 13.5 mm armature, including the EVR 2 through EVR 40 range.
- Does this coil support AC voltage? No, this is a dedicated 24VDC unit. Using AC voltage will cause immediate coil burnout.
- Can the coil be replaced without opening the system? Yes, the snap-on design allows for "hot swaps" of the electrical coil without regaining or discharging refrigerant.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
