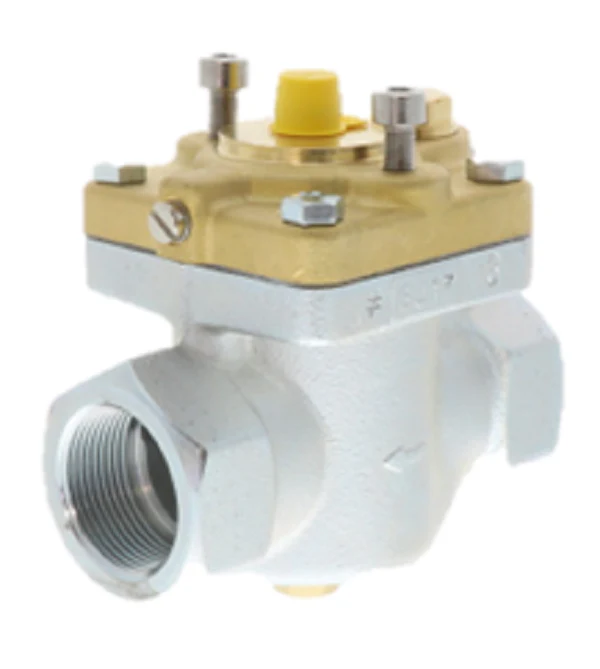

Danfoss 016D5032 Valve Body
The Danfoss 016D5032 is a heavy-duty 1.25-inch WVTS 32 water regulating valve body engineered for precise temperature control in demanding industrial cooling and refrigeration systems. This cast iron water valve body is designed as a self-acting, servo-operated component, meaning it functions without external power sources like electricity or compressed air. With a robust Kv value of 12.5 m³/h, it effectively manages the flow of fresh water or neutral brine. The unit handles a maximum working pressure of 145 psig (10 bar) and is tested up to 232 psig to ensure structural integrity under pressure spikes. This valve body is fully compatible with WVTS thermostatic pilot elements, opening on rising sensor temperatures to maintain constant process conditions. Its 1 1/4" G-thread internal connections and high-capacity orifice make it a reliable choice for contractors servicing large-scale condensers or heat exchangers where Danfoss cooling water valves are required for operational efficiency and liquid-side stability.
Key Benefits- High Flow Capacity: Features a 32mm orifice size and a 12.5 m³/h flow coefficient for high-volume cooling applications.
- Self-Acting Operation: Indirect servo-operated design eliminates the need for auxiliary power, reducing installation complexity.
- Durability: Constructed from cast iron with a pressed-in bronze seat and stainless steel pilot cone for extended service life.
- Broad Temperature Range: Rated for media temperatures ranging from -13°F to 194°F (-25°C to 90°C), suitable for both chilled brine and hot water processes.
- Contaminant Resistance: Built-in pilot filter and dirt-insensitive design protect the internal bellows and seat from debris.
Is the pilot element included with the 016D5032 valve body?
No, the thermostatic pilot element (including the capillary tube and sensor) must be ordered separately based on your specific temperature range requirements. This SKU includes the cast iron valve body, flange gaskets, and bolts.
What is the minimum differential pressure required for operation?
The Danfoss WVTS 32 requires a minimum differential pressure of 7.2 psi (0.5 bar) to open and a maximum of 58 psi (4 bar) for standard operation. For systems requiring 1–10 bar differential pressure, the servo spring must be replaced.
Can this valve be used with sea water?
This specific model is designed for neutral media like fresh water or neutral brine. For seawater applications, a specialized version with different metallurgy is typically required to prevent corrosion.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $948.80
-65%$948.80
$332.08Danfoss 016D5032 Valve Body
The Danfoss 016D5032 is a heavy-duty 1.25-inch WVTS 32 water regulating valve body engineered for precise temperature control in demanding industrial cooling and refrigeration systems. This cast iron water valve body is designed as a self-acting, servo-operated component, meaning it functions without external power sources like electricity or compressed air. With a robust Kv value of 12.5 m³/h, it effectively manages the flow of fresh water or neutral brine. The unit handles a maximum working pressure of 145 psig (10 bar) and is tested up to 232 psig to ensure structural integrity under pressure spikes. This valve body is fully compatible with WVTS thermostatic pilot elements, opening on rising sensor temperatures to maintain constant process conditions. Its 1 1/4" G-thread internal connections and high-capacity orifice make it a reliable choice for contractors servicing large-scale condensers or heat exchangers where Danfoss cooling water valves are required for operational efficiency and liquid-side stability.
Key Benefits- High Flow Capacity: Features a 32mm orifice size and a 12.5 m³/h flow coefficient for high-volume cooling applications.
- Self-Acting Operation: Indirect servo-operated design eliminates the need for auxiliary power, reducing installation complexity.
- Durability: Constructed from cast iron with a pressed-in bronze seat and stainless steel pilot cone for extended service life.
- Broad Temperature Range: Rated for media temperatures ranging from -13°F to 194°F (-25°C to 90°C), suitable for both chilled brine and hot water processes.
- Contaminant Resistance: Built-in pilot filter and dirt-insensitive design protect the internal bellows and seat from debris.
Is the pilot element included with the 016D5032 valve body?
No, the thermostatic pilot element (including the capillary tube and sensor) must be ordered separately based on your specific temperature range requirements. This SKU includes the cast iron valve body, flange gaskets, and bolts.
What is the minimum differential pressure required for operation?
The Danfoss WVTS 32 requires a minimum differential pressure of 7.2 psi (0.5 bar) to open and a maximum of 58 psi (4 bar) for standard operation. For systems requiring 1–10 bar differential pressure, the servo spring must be replaced.
Can this valve be used with sea water?
This specific model is designed for neutral media like fresh water or neutral brine. For seawater applications, a specialized version with different metallurgy is typically required to prevent corrosion.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
