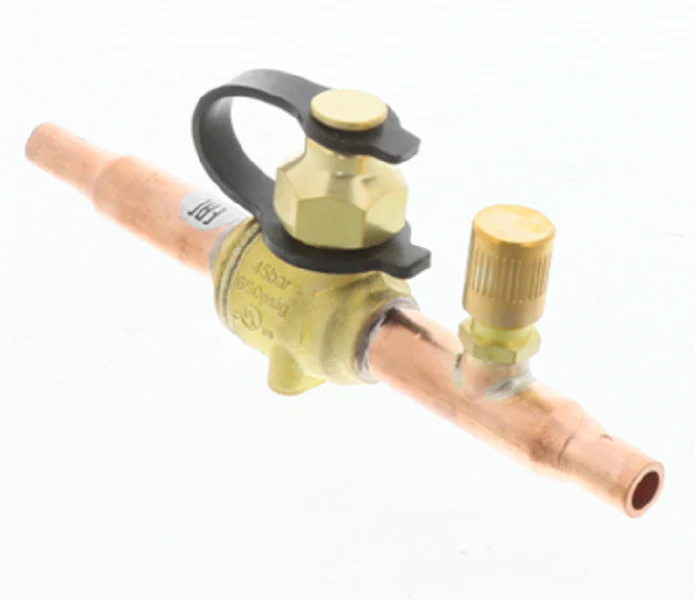

Danfoss 009L8050 Valve
The Danfoss 009L8050 is a high-performance GBC 6s shut-off ball valve designed for bi-directional flow in liquid, suction, and hot gas lines. Featuring a 1/4" ODF solder connection, this valve is engineered for maximum tightness and minimal pressure drop across commercial refrigeration and air conditioning systems. The burst-proof spindle design prevents liquid entrapment internally, while the double O-ring stem seal ensures long-term leak-free operation. This model includes an integrated access port with a Schrader valve, allowing for convenient system diagnostics and pressure monitoring without interrupting the main flow.
Constructed with a laser-welded brass body, the 009L8050 is rated for a maximum working pressure of 650 psig (45 bar) and a broad temperature range of -40°F to 300°F. It is compatible with a wide array of HCFC, HFC, and flammable refrigerants, including R410A, R134a, R32, R448A, and R290. The slimline design and threaded holes for panel mounting provide versatile installation options for contractors working in tight mechanical spaces.
Key Benefits:
- Bi-directional flow capability allows for flexible installation without concerns regarding valve orientation.
- Full port design provides maximum flow capacity with a Kv value of 1.83 m³/h, minimizing system turbulence.
- Ball status indicator on the spindle top provides immediate visual confirmation of the open or closed position.
- Seal cap with wire strap prevents accidental removal and complies with safety regulations like EN 378.
- Specialized PTFE valve seats ensure a tight seal and low operating torque for manual shut-off.
Common Questions:
Can this valve be used with R290 (Propane)?
Yes, the Danfoss GBC 6s is technically approved for use with Fluid Group 1 and 2 refrigerants, including R290 and other mildly flammable A2L or A3 refrigerants.
Does this model require removal of internal parts before brazing?
While the laser-welded body is robust, it is standard practice to wrap the valve body in a wet cloth during the solder ODF connection process to protect the internal teflon seats and gaskets from excessive heat.
Is the access port replaceable?
The 009L8050 comes with a standard 1/4" SAE access port and Schrader valve. While the core is replaceable, the port itself is integrated into the brass body for maximum structural integrity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
