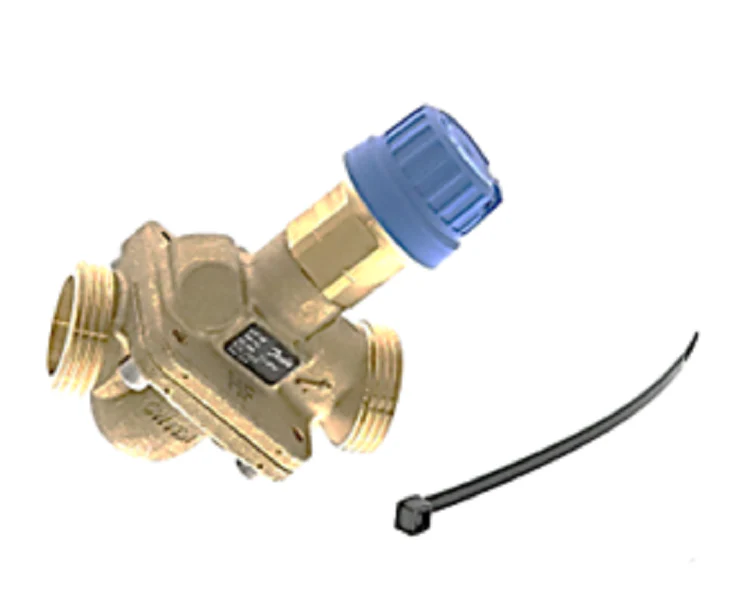

Danfoss 003Z1333 Valve
The Danfoss 003Z1333 is a high-performance Pressure Independent Control Valve (PICV) from the AB-QM series, specifically engineered for 3/4" hydronic piping systems. This valve eliminates the need for complex Cv calculations by integrating a differential pressure controller directly into the assembly, ensuring 100% valve authority regardless of system pressure fluctuations. Designed with a robust CW 617N brass body, it handles an adjustable flow range of 1.5 to 7.5 GPM, making it a versatile solution for balancing and modulating control in terminal units like fan coils, chilled beams, and air handling units.
For contractors, the Danfoss 003Z1333 3/4" AB-QM Valve simplifies commissioning by combining three critical functions—control, balancing, and flow limitation—into one compact unit. It features an external NPT thread for standard field installation and is compatible with various Danfoss actuators for precise hydronic balancing and thermal management. By preventing overflows and maintaining a high Delta T, this valve significantly reduces pump energy consumption and improves overall system efficiency in both heating and cooling applications.
Key Benefits:- Ensures constant 1.5-7.5 GPM flow rates despite upstream pressure changes, maintaining 100% valve authority.
- Functions as a control valve, manual balance valve, and flow limiter in a single 3/4" NPT body, reducing installation footprint and labor.
- Linear flow characteristics allow for precise temperature control when paired with a compatible Danfoss actuator.
- Resilient construction with a static pressure rating up to 300 psi and a wide media temperature range (15°F to 250°F).
- Streamlined commissioning process—simply set the flow via the adjustment knob without the need for specialized measuring equipment.
- What is the primary advantage of the AB-QM over a standard balancing valve? The AB-QM provides pressure-independent regulation, meaning it automatically maintains the correct flow even as other valves on the circuit open or close, preventing coil overflows and energy waste.
- Does this valve include test plugs? No, the 003Z1333 model is the "High Flow" version without test plugs. If flow verification via differential pressure is required, ensure your specifications call for the version with P/T ports.
- Can I use this for both heating and chilled water systems? Yes, the Danfoss AB-QM 003Z1333 is suitable for glycol-water mixtures and standard hydronic fluids within a temperature range of 15°F to 250°F.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $205.52
-65%$205.52
$71.93Danfoss 003Z1333 Valve
The Danfoss 003Z1333 is a high-performance Pressure Independent Control Valve (PICV) from the AB-QM series, specifically engineered for 3/4" hydronic piping systems. This valve eliminates the need for complex Cv calculations by integrating a differential pressure controller directly into the assembly, ensuring 100% valve authority regardless of system pressure fluctuations. Designed with a robust CW 617N brass body, it handles an adjustable flow range of 1.5 to 7.5 GPM, making it a versatile solution for balancing and modulating control in terminal units like fan coils, chilled beams, and air handling units.
For contractors, the Danfoss 003Z1333 3/4" AB-QM Valve simplifies commissioning by combining three critical functions—control, balancing, and flow limitation—into one compact unit. It features an external NPT thread for standard field installation and is compatible with various Danfoss actuators for precise hydronic balancing and thermal management. By preventing overflows and maintaining a high Delta T, this valve significantly reduces pump energy consumption and improves overall system efficiency in both heating and cooling applications.
Key Benefits:- Ensures constant 1.5-7.5 GPM flow rates despite upstream pressure changes, maintaining 100% valve authority.
- Functions as a control valve, manual balance valve, and flow limiter in a single 3/4" NPT body, reducing installation footprint and labor.
- Linear flow characteristics allow for precise temperature control when paired with a compatible Danfoss actuator.
- Resilient construction with a static pressure rating up to 300 psi and a wide media temperature range (15°F to 250°F).
- Streamlined commissioning process—simply set the flow via the adjustment knob without the need for specialized measuring equipment.
- What is the primary advantage of the AB-QM over a standard balancing valve? The AB-QM provides pressure-independent regulation, meaning it automatically maintains the correct flow even as other valves on the circuit open or close, preventing coil overflows and energy waste.
- Does this valve include test plugs? No, the 003Z1333 model is the "High Flow" version without test plugs. If flow verification via differential pressure is required, ensure your specifications call for the version with P/T ports.
- Can I use this for both heating and chilled water systems? Yes, the Danfoss AB-QM 003Z1333 is suitable for glycol-water mixtures and standard hydronic fluids within a temperature range of 15°F to 250°F.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
