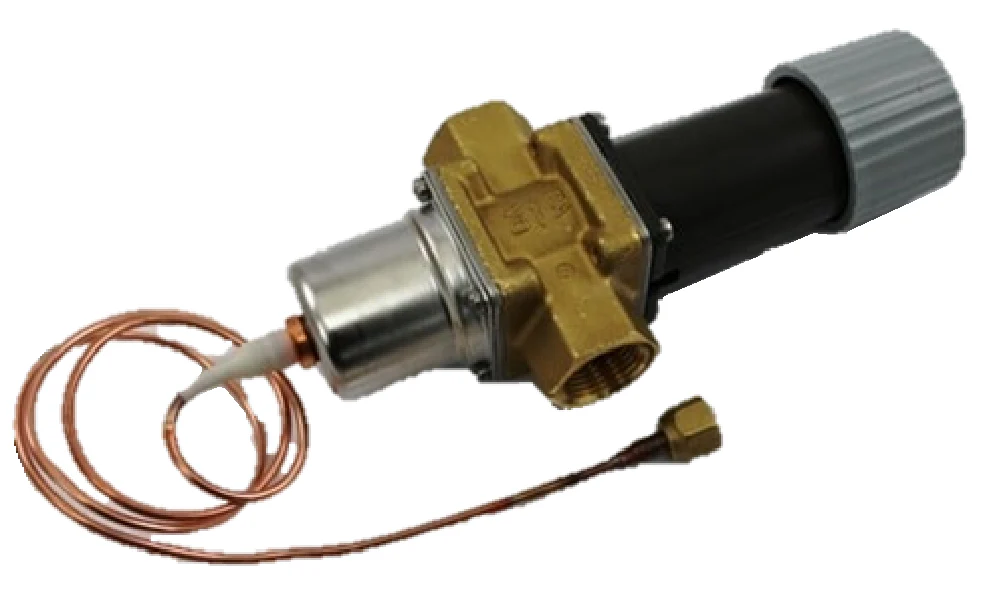

Danfoss 003N7025 Water Valve
The Danfoss 003N7025 is a heavy-duty pressure actuated water-regulating valve engineered for precision flow control in water-cooled refrigeration and air conditioning systems. Featuring a 3/4 inch NPT connection, this valve is designed to modulate the flow of water to the condenser to maintain a stable head pressure during varying load conditions. With a pressure setting range of 60 to 333 PSI and a 36-inch capillary tube, it provides reliable performance in demanding commercial environments. This model serves as a direct cross-reference for the Johnson Controls V46AC-1, offering a drop-in replacement that eliminates the need for extensive piping modifications. The bellows-operated mechanism ensures rapid response to pressure fluctuations, preventing compressor cycling issues and optimizing heat exchange efficiency. Built with high-grade materials to resist corrosion, the Danfoss WVFX 20 series remains the industry standard for contractors requiring a pressure-operated water valve that balances durability with tight tolerance control.
- Precise Head Pressure Control: Maintains optimal condensing pressure across a wide 60-333# range to ensure system stability.
- Universal Compatibility: Serves as a direct replacement for the V46AC-1 water valve, simplifying field repairs and inventory management.
- Enhanced Durability: Robust bellows and valve seat construction withstand harsh water conditions and frequent modulation.
- Flexible Installation: Features a 36" capillary for versatile mounting options away from high-vibration components.
- Efficiency Optimization: Minimizes water consumption by accurately throttling flow based on real-time refrigerant side demand.
Common Technical Questions
What is the maximum working pressure for the Danfoss 003N7025?
This valve is rated for a maximum medium pressure on the water side of 230 PSI and a maximum refrigerant side pressure of 385 PSI, making it suitable for most standard cooling applications.
Can this valve be used with seawater or corrosive fluids?
The standard 003N7025 is designed for fresh water and neutral brine. For seawater applications, a stainless steel or titanium version from the WVFX series is required to prevent galvanic corrosion.
How do I adjust the opening pressure for this valve?
The opening pressure is adjusted by turning the setting spindle. Increasing the spring tension raises the pressure at which the valve begins to open, allowing for fine-tuning based on the specific refrigerant and ambient conditions.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
