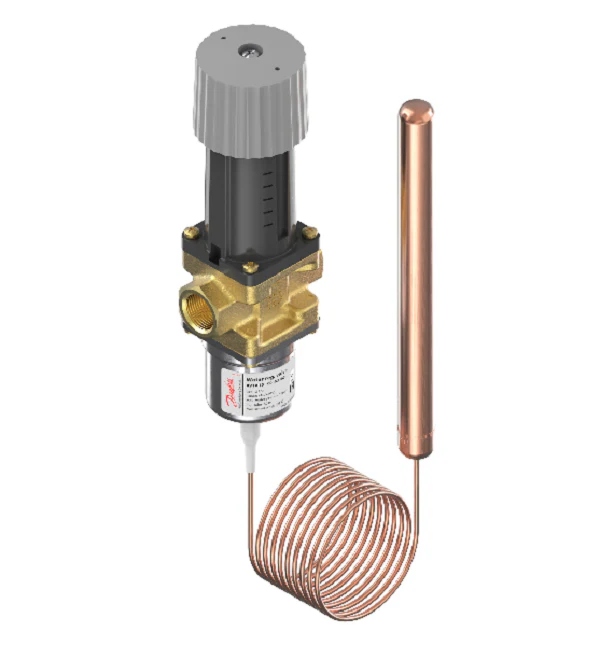

Danfoss 003N3132 Valve
The Danfoss 003N3132 Valve is a heavy-duty AVTA 20 3/4" thermostatic valve designed for self-acting proportional regulation of flow in cooling and heating systems. Engineered for industrial environments, this water regulating valve operates without external power or compressed air, utilizing a universal charge capillary sensor to modulate flow based on temperature change. With a temperature range of 0 to 30°C (32 to 86°F), this 3/4" ISO 228-1 G-threaded valve is ideal for managing neutral media like water, oil, and inert gases. The forged brass body ensures maximum durability, handling a differential pressure up to 145 psi and a maximum working pressure of 232 psig. This self-acting cooling water valve opens on rising sensor temperature, providing high Kv values of 3.4 m³/h for consistent performance in closed or waste cooling circuits. Its design simplifies HVAC valve installation, featuring a bellows element that can be replaced while the system remains pressurized.
Key Benefits- Self-Acting Operation: Eliminates the need for electrical wiring or pneumatic controllers, reducing complexity and potential points of failure.
- Precise Flow Modulation: The thermally operated sensor provides infinite proportional regulation to maintain constant set-point temperatures.
- Dirty Media Resistance: The valve’s force-compensation design prevents particles and debris from sticking, ensuring a long service life in real-world conditions.
- Flexible Mounting: The AVTA 20 thermostatic valve body functions in any orientation, while the 2000mm capillary tube provides versatile sensor placement.
- Universal Compatibility: Specifically built for universal charge applications, allowing the sensor to be installed in environments cooler or warmer than the valve body.
Is this valve suitable for systems with high vibration?
Yes, but it is critical to relieve the capillary tube at the terminal ends to prevent stress fractures in high-vibration environments.
Can I serviced the internal components without draining the system?
The bellows element and setting unit can be swapped out while there is water in the pipes, minimizing downtime during maintenance.
Does this valve open or close as the temperature rises?
The AVTA 20 (003N3132) is designed to open on a rise in sensor temperature, making it a standard choice for cooling water regulation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
