Danfoss 003N0032 Thermostatic Valve

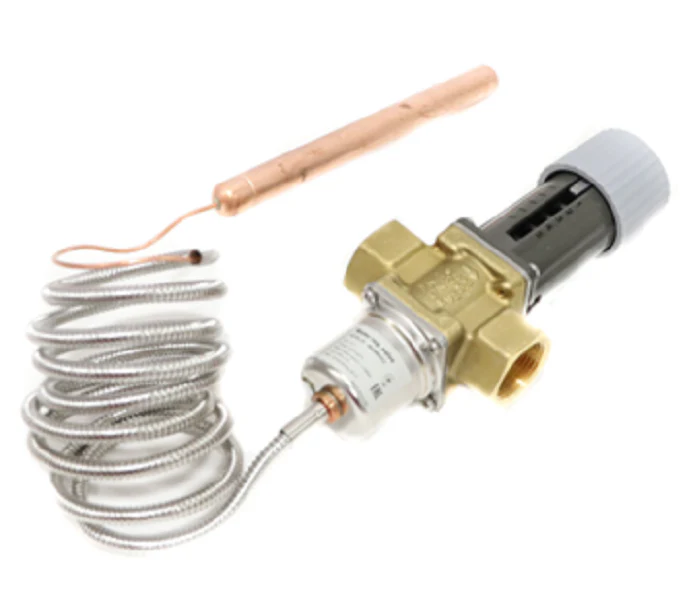

The Danfoss 003N0032 is a heavy-duty AVTA 25 thermostatic water valve designed for proportional flow regulation in industrial cooling and heating systems. As a self-acting component, it requires no external electricity or compressed air, making it a reliable solution for maintaining stable process temperatures in remote or demanding environments. This specific 1-inch G-thread model features a durable brass body and is engineered to open on a rising sensor temperature. It is ideally suited for closed and waste cooling systems, managing media including fresh water and neutral brines with a maximum working pressure of 16 bar.
Built for veteran contractors, the Danfoss AVTA 25 utilizes a pressure-relieved design where the degree of opening remains unaffected by differential pressure fluctuations up to 10 bar. The 003N0032 typically supports a regulating range of 25°C to 65°C, ensuring precise thermal management for chillers, compressors, and marine applications. Its force-compensated design provides high resistance to dirt, preventing particles from adhering to the valve seat and ensuring consistent performance without frequent maintenance interventions.
Key Benefits- Self-acting operation eliminates the need for wiring or power supplies, simplifying field installation.
- Pressure-relieved design ensures stable flow regulation regardless of system pressure drops.
- Dirt-resistant construction utilizes a force-compensated mechanism to prevent clogging in raw water applications.
- High Kv value of 5.5 m³/h provides sufficient capacity for large-scale heat exchange processes.
- Flexible sensor mounting allows the universal charge sensor to be installed in any orientation relative to the valve.
Is the Danfoss 003N0032 compatible with aggressive media?
This standard brass model is designed for fresh water and neutral brines. For aggressive chemical or marine environments, a stainless steel version (AVTA SS) should be utilized to prevent corrosion.
Can this valve be used for heating systems?
While often used for cooling (opening on rising temp), the AVTA series is versatile. However, verify that the "open on rising temperature" configuration matches your specific thermal logic before installation.
What is the maximum temperature the sensor can tolerate?
The thermostatic element is designed to withstand sensor temperatures up to 130°C, though the standard regulation range is focused on moderate process temperatures.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
