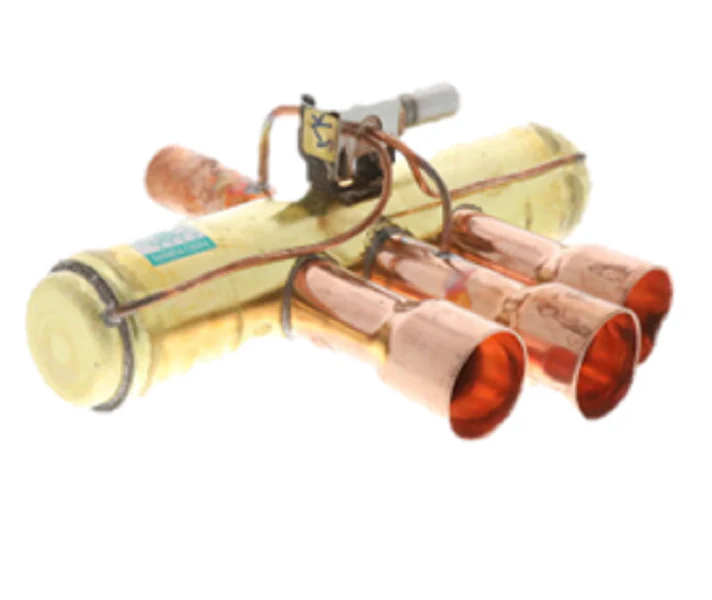

Daikin-McQuay 910198405 Valve
The Daikin-McQuay 910198405 Reversing Valve is a critical 4-way pilot-operated component engineered for 10-ton HVAC systems and heat pump applications. Designed for high-capacity thermal management, this 10-ton reversing valve features a 0.75-inch suction inlet and a 1.125-inch discharge outlet, ensuring optimal refrigerant flow and pressure drop minimization during cycle transitions. Built to withstand the rigors of commercial Daikin-McQuay heat pump repair, it utilizes a slide-block mechanism to redirect flow effectively between heating and cooling modes. This HVAC 4-way valve is compatible with standard 24V or 120V solenoid coils (sold separately) and is pressurized for modern high-pressure refrigerants. For contractors performing a reversing valve replacement, the copper sweat connections facilitate a standard brazing process, though heat dissipation techniques are required to protect internal seals during installation. This Daikin-McQuay 910198405 ensures reliable system switching and long-term performance in heavy-duty rooftop units and chillers.
Key Benefits
- Precision Machined Ports: The 3/4" x 1-1/8" connections ensure a secure fit and accurate flow rates for 120,000 BTU systems.
- Industrial Durability: Constructed with heavy-gauge brass and copper to handle high-pressure displacement without internal bypass leakage.
- Rapid Cycle Transition: Optimized pilot-operated sliding mechanism reduces the "clunk" and pressure spikes during mode changeovers.
- Broad Compatibility: An OEM-spec Daikin-McQuay 910198405 replacement that fits various commercial heat pump configurations.
Common Questions
How do I troubleshoot a stuck reversing valve?
Verify the solenoid coil is receiving the correct voltage. If the coil is energized but the slide does not move, check for pressure differentials; if the valve remains stuck, physical debris or internal seal failure likely necessitates a full replacement.
What is the proper brazing procedure for this valve?
Always wrap the valve body in a wet rag or use a heat-sink paste during installation. Excessive heat will melt the internal Teflon slides, leading to 100% component failure.
Is the solenoid coil included with this part?
The 910198405 valve is typically sold as the body only. You must reuse your existing coil or match the voltage requirements (24V, 120V, or 240V) with a new compatible solenoid.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
