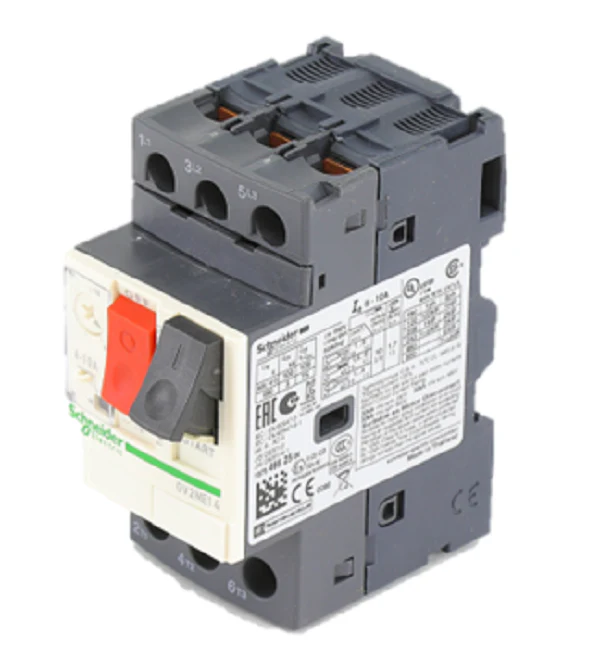

Daikin-McQuay 349934030 Starter
The Daikin-McQuay 349934030 Starter is a professional-grade manual motor protector designed for heavy-duty commercial HVAC applications. Engineered as a MANUAL TYPE 6-10AMP 600V starter, this component serves as a critical integration point for motor control, combining manual switching with high-precision overload protection. By eliminating the reliance on traditional fuses, this unit streamlines the control circuit and reduces downtime during phase failures or amperage spikes. The 349934030 features an adjustable bimetallic overload mechanism, allowing technicians to calibrate the trip settings precisely between 6.0 and 10.0 Amps to match the specific Full Load Amps (FLA) of the motor. Rated for up to 600V AC, it is fully compatible with three-phase industrial systems and can be field-wired for single-phase motor protection by looping the poles in series. This genuine Daikin 349934030 part ensures reliable arc suppression and short-circuit interruption, maintaining the operational integrity of fans, blowers, and pumps in McQuay and Daikin Applied equipment.
Key Benefits- Fuseless Motor Protection: Integrates circuit breaker and overload relay functions into a single Daikin 349934030 assembly, simplifying panel layout.
- Precise FLA Calibration: Adjustable dial supports a 6-10 Amp range, ensuring the motor is protected against thermal overload without nuisance tripping.
- Industrial Voltage Rating: Built to handle 600V manual starter requirements in demanding rooftop units and chillers.
- Robust Manual Control: Provides a positive mechanical interface for starting and stopping motor functions during service or routine operation.
- High Short-Circuit Capacity: Engineered for quick reaction times, protecting downstream sensitive electronics during high-fault conditions.
How do I set the correct amperage on the 349934030?
Using a small flat-head screwdriver, rotate the setting dial until the indicator point matches the motor's rated FLA on the nameplate. It is best practice to verify actual running amps with a true-RMS clamp meter during operation.
Can this starter be used for single-phase 230V motors?
Yes, although it is a 3-pole device, it can support single-phase applications. To ensure the overload protection functions correctly, technicians typically wire the three poles in series to maintain the thermal balance of the bimetallic strips.
What are the signs that the manual starter needs replacement?
If the toggle or rotary handle fails to stay in the "ON" position (unrelated to a trip event), or if there is visible pitting on the contacts or evidence of high-resistance heat at the terminals, the Daikin-McQuay 349934030 should be replaced immediately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
