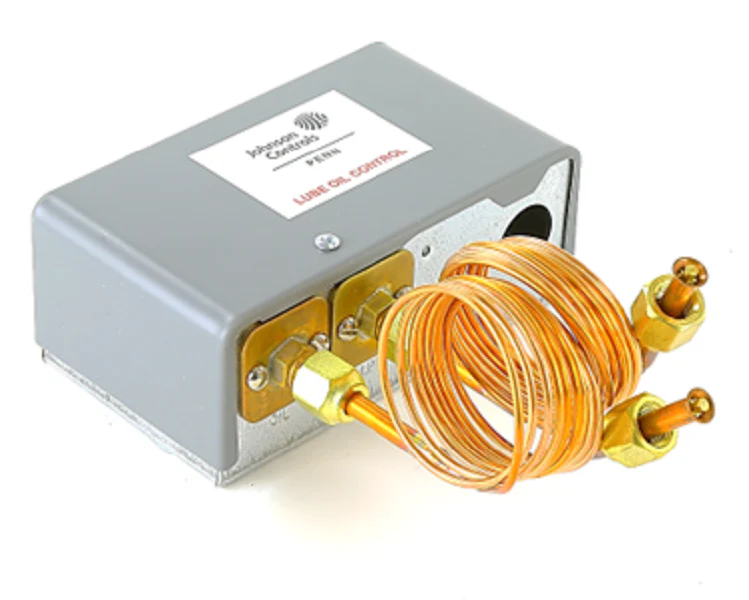

Daikin-McQuay 330122001 Control
The Daikin-McQuay 330122001 Control is a specialized SPST NC oil pressure control switch designed for critical monitoring in industrial refrigeration and commercial HVAC systems. This normally closed (NC) safety device is engineered to protect compressors from mechanical failure by detecting drops in net oil pressure. If the differential pressure falls below the calibrated Close 55# set point, the internal single-pole single-throw (SPST) contacts respond to interrupt the control circuit, preventing catastrophic bearing damage or terminal hardware seizing due to lubrication loss.
Built for compatibility with Daikin Applied and legacy McQuay chillers or rooftop units, this component provides a reliable interface for oil safety lockout protocols. The 330122001 ensures that the compressor operates only when sufficient lubrication is present at the crankcase, maintaining system integrity under heavy load. Its robust design is optimized for high-vibration environments, making it a standard replacement part for contractors managing large-scale refrigerant oil management systems.
Key Benefits
- Critical Compressor Protection: Prevents system operation during low oil pressure events to avoid expensive hardware replacement.
- OEM Compatibility: Exact fit for Daikin-McQuay 330122001 specifications, ensuring seamless integration with existing control boards.
- Precise Set Points: Calibrated for Close 55# (PSIG) performance, offering consistent triggering for oil pressure safety.
- Durable SPST Contacts: Features industrial-grade Normally Closed switching for dependable failsafe operation.
- Contractor-Friendly Installation: Standard pressure porting and wiring terminals facilitate rapid field swaps during maintenance cycles.
Common Questions
What does 'Close 55#' signify in this control?
It indicates the pressure threshold in PSIG at which the switch completes the circuit or maintains the closed position, ensuring the system only runs when the net oil pressure meets this minimum requirement.
Is this switch compatible with non-Daikin systems?
While functionally similar to other SPST oil controls, this part is specifically indexed for McQuay and Daikin equipment. Verify the 330122001 part number against your technical manual for exact compatibility.
How do I test if the 330122001 is functioning correctly?
Technicians should use a multimeter to check for continuity across the terminals when the system is at rest. Since it is a Normally Closed (NC) switch, it should show continuity until a pressure drop or fault condition occurs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
