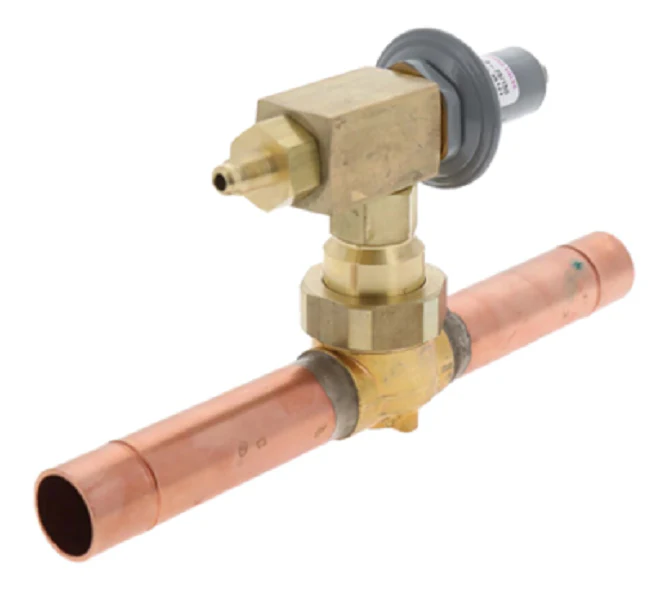

Daikin-McQuay 258951301 Bypass Valve
The Daikin-McQuay 258951301 Hot Gas Bypass Valve is a critical pressure-regulating component designed for commercial HVAC systems and industrial refrigeration units. Engineered to maintain a constant minimum suction pressure, this valve effectively manages compressor capacity during periods of low sensory load. By diverting high-temperature discharge gas directly to the evaporator inlet or suction line, it prevents evaporator coil freeze-up and ensures stable refrigerant velocity. This HGBP valve features a 7/8 ODF (Outside Diameter Female) connection and is configured as Normally Open (N.O.), providing a reliable mechanical solution to reduce compressor short cycling. Whether integrated into rooftop HVAC units or specialized process chillers, the Daikin 258951301 protects the compressor from liquid slugging and thermal protection trips by providing an artificial load. Its robust construction is tailored for high-demand industrial refrigeration environments where precise refrigerant flow control is non-negotiable for system longevity and energy efficiency.
Key Benefits- Prevents evaporator icing by maintaining suction pressure above the freezing point during low-load cycles.
- Reduces compressor wear and tear by minimizing frequent start-stop cycles through effective capacity modulation.
- Stabilizes refrigerant discharge temperature when paired with proper liquid injection cooling.
- Ensures consistent performance in Daikin-McQuay industrial systems and large-scale commercial rooftop units.
- Facilitates 7/8 inch ODF connections for secure, leak-resistant braze installation in high-pressure lines.
How do I adjust the opening point on a Daikin-McQuay 258951301?
This mechanical bypass valve typically features an adjustment stem under a protective cap. To increase the suction pressure setpoint, turn the stem clockwise in small increments; turn it counter-clockwise to decrease the setting. Always allow the system to stabilize between adjustments.
What are the signs of a failing Hot Gas Bypass Valve?
Technicians often identify a faulty HGB valve through symptoms like erratic suction pressure fluctuations, excessive evaporator frosting, or high compressor shell temperatures. If the valve fails to modulate, it can lead to compressor overheating or a complete loss of capacity control.
Is this part compatible with R-410A and R-22 systems?
The Daikin 258951301 is designed for compatibility with standard HVACR refrigerants used in McQuay equipment. Verify that the pressure range of the valve matches the specific operating requirements of your system's refrigerant type before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
