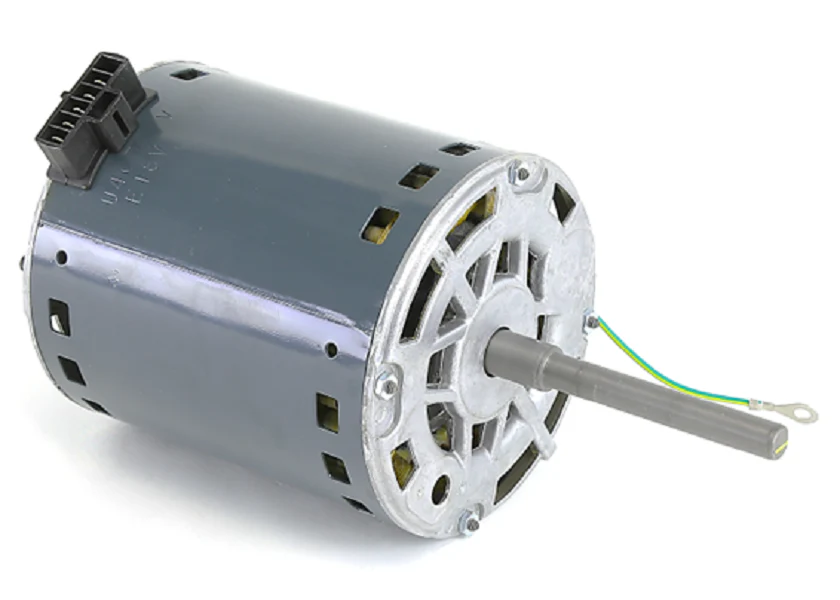

Daikin-McQuay 106391902 Motor
The Daikin-McQuay 106391902 Motor is a high-performance 3/4HP replacement motor engineered for demanding commercial HVACR applications. Operating at 460V and a nominal 900 RPM (nameplate 850 RPM), this Permanent Split Capacitor (PSC) motor is a direct OEM component for Daikin Applied and legacy McQuay equipment. It features an 8-pole motor design and Open Drip Proof (ODP) enclosure, making it ideal for fan and blower assemblies where air circulation is critical for system cooling. With a 2.00 Amp full load rating, this motor provides the torque necessary for industrial-grade performance while maintaining the energy efficiency required in modern 460V three-phase environments.
Built for long-term reliability in air handling units (AHUs) and rooftop systems, the 106391902 OEM motor ensures precise physical and electrical compatibility with your existing equipment. Using a genuine McQuay 106391902 part eliminates the common alignment and shaft-diameter issues found with generic alternatives, reducing downtime during maintenance cycles. This motor is typically found in larger commercial chillers and ventilation units where low-speed, high-torque airflow is required.
Key Benefits:
- Precision Engineering: Direct OEM replacement motor for Daikin and McQuay equipment ensures seamless installation.
- Thermal Efficiency: ODP enclosure allows for superior heat dissipation during continuous operation.
- Optimized Performance: 900 RPM (8-pole) configuration delivers consistent static pressure for HVAC blowers.
- Voltage Compatibility: Specifically designed for 460V AC industrial power systems.
- Robust Construction: Heavy-duty internal components built to withstand the rigorous duty cycles of commercial HVACR systems.
Common Questions:
Can I use this 460V motor on a 208-230V system?
No. The 106391902 is specifically wound for 460V AC. Using it on lower voltage will result in motor failure or significantly reduced torque. If you need a 230V version, refer to the 106391901 motor.
Is this a multi-speed motor?
This is a single-speed PSC motor. Speed control should only be handled if the system is designed for it; otherwise, it is intended to run at its rated 900 RPM (nominal) for maximum efficiency.
What does the ODP enclosure mean for my application?
Open Drip Proof means the motor allows internal airflow for cooling but is protected from water droplets falling from a vertical angle. It is designed for indoor or protected outdoor use within an equipment cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
