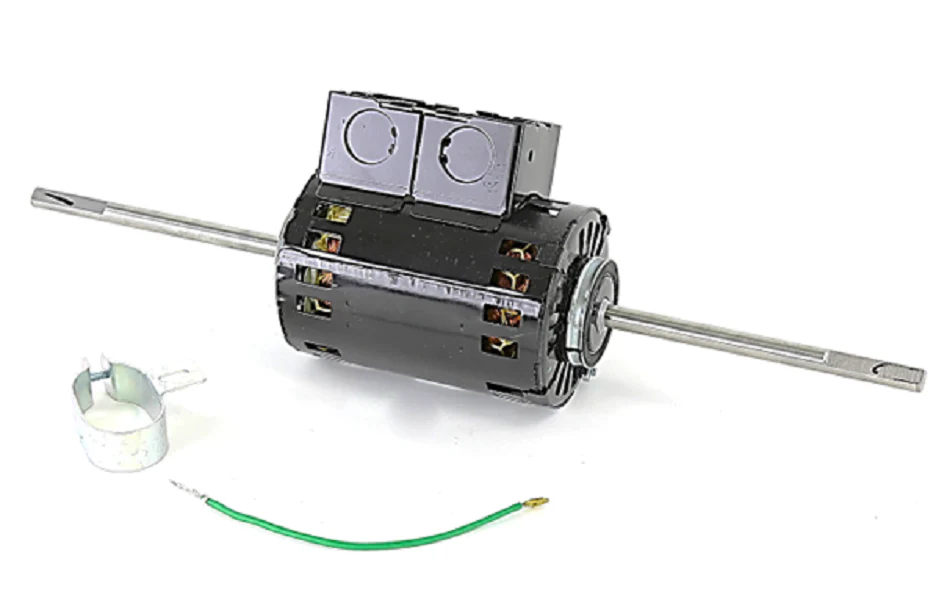

Daikin-McQuay 038256300 Motor
The Daikin-McQuay 038256300 Motor is a precision-engineered 1/15HP 115V 1000RPM double shaft motor designed for critical fan coil and air handling applications. This OEM replacement motor features a dual-shaft configuration, allowing for synchronized blower wheel operation to maintain specific static pressure requirements. Running at a nominal speed of 1000 RPM, this 115V single-phase motor is optimized for low-noise operation and consistent torque in light-duty HVAC systems. Technicians frequently spec this unit for Daikin McQuay fan coil units where precise shaft alignment and voltage compatibility are non-negotiable for system balance. The double shaft design ensures versatility in air distribution, while the 1/15 horsepower rating provides the necessary efficiency for continuous duty cycles without excessive heat rise. Professional installation is recommended to ensure proper lead wiring and capacitor matching for optimal motor longevity and performance.
- OEM Compatibility: Exact drop-in replacement for Daikin and McQuay part number 038256300, ensuring proper fitment and electrical alignment.
- Dual-Shaft Versatility: Supports double-sided blower configurations common in high-efficiency air handlers.
- Efficient Performance: 1/15 HP motor rated at 1000 RPM provides the correct airflow-to-static pressure ratio for small-to-medium FCU units.
- Direct Drive Reliability: Simplifies maintenance by eliminating belt-driven components and reducing mechanical failure points.
Common Questions
What are the rotation and shaft dimensions for this motor?
This motor is designed to meet original factory specifications for Daikin-McQuay units, featuring standard shaft diameters and lengths compatible with OEM blower wheels. Verify the specific shaft length against your existing unit to ensure proper clearance.
Can I use a variable frequency drive with this 115V motor?
This 115V single-phase motor is typically optimized for set speeds or multi-tap configurations. Using an external VFD is generally not advised unless the specific wiring diagram and motor type support voltage modulation.
How do I confirm if this motor fits my specific McQuay fan coil?
Cross-reference the part number 038256300 with your unit’s data plate. This motor is a direct replacement for specific air handler series requiring a double-shaft 1/15 HP 115V footprint.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
