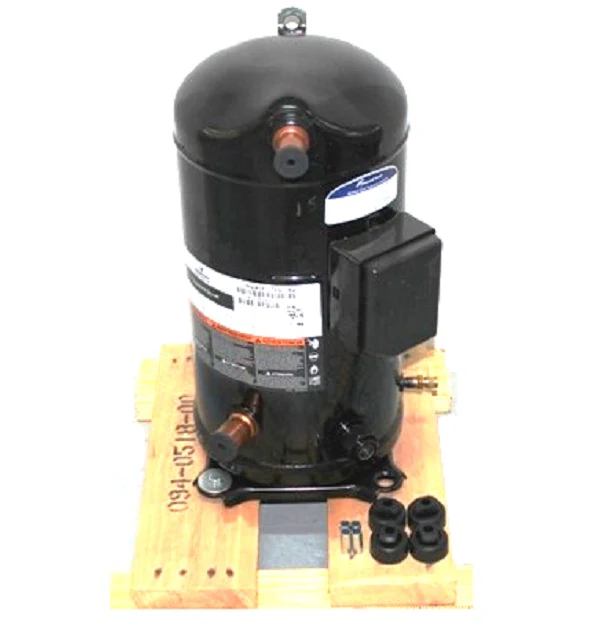

Copeland ZR94KCE-TFD-950 Compressor
The Copeland ZR94KCE-TFD-950 is a high-efficiency hermetic scroll compressor engineered specifically for heavy-duty commercial air conditioning and precision cooling applications. Operating at 460V 3-phase power, this unit delivers a nominal capacity of 94,000 BTU/hr and is optimized for use with R407C refrigerant and POE oil. This model serves as the direct technical successor and updated version for ZR94KC-TFD-950, ensuring a seamless drop-in replacement for legacy systems. Designed for reliability in demanding environments, the ZR94KCE-TFD-950 features an internal pressure relief valve and thermal protection to maintain system integrity under varying load conditions. For technicians performing retrofits or repairs, this Copeland scroll compressor provides the high volumetric efficiency and low sound levels required for rooftop units, chillers, and large-scale split systems. Its robust design minimizes moving parts, reducing mechanical friction and extending the operational life of the HVAC system.
- Direct Replacement: Engineered to replace the older ZR94KC-TFD-950 model with the same footprint and piping configurations.
- Optimized Performance: Delivering 94,000 BTU/hr at 460V, it provides the necessary lift for large commercial tonnage requirements.
- Refrigerant Compatibility: Designed for R407C and R134a applications using polyolester (POE) lubricants.
- Quiet Operation: The scroll technology offers a smoother compression cycle compared to reciprocating units, reducing vibration and decibel levels.
Common Installation Questions
Is the ZR94KCE-TFD-950 compatible with older R22 systems?
While this model is primarily designed for R407C, it can be used in R22 retrofits provided the mineral oil is thoroughly flushed and replaced with the correct POE oil, as the internal components are optimized for synthetic lubricants.
What are the electrical specifications for this compressor?
This unit requires a 460V, 60Hz, 3-phase power supply. Always verify that your contactor and overcurrent protection are rated for the Maximum Continuous Current (MCC) specified on the nameplate.
Does this unit include the mounting hardware and molded plug?
Standard shipments typically include the mounting grommets and sleeves; however, the TFD-950 designation refers to the electrical terminal configuration which utilizes a terminal block or standard nut/stud connection rather than a molded plug.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $4,567.77
-65%$4,567.77
$1,598.72Copeland ZR94KCE-TFD-950 Compressor
The Copeland ZR94KCE-TFD-950 is a high-efficiency hermetic scroll compressor engineered specifically for heavy-duty commercial air conditioning and precision cooling applications. Operating at 460V 3-phase power, this unit delivers a nominal capacity of 94,000 BTU/hr and is optimized for use with R407C refrigerant and POE oil. This model serves as the direct technical successor and updated version for ZR94KC-TFD-950, ensuring a seamless drop-in replacement for legacy systems. Designed for reliability in demanding environments, the ZR94KCE-TFD-950 features an internal pressure relief valve and thermal protection to maintain system integrity under varying load conditions. For technicians performing retrofits or repairs, this Copeland scroll compressor provides the high volumetric efficiency and low sound levels required for rooftop units, chillers, and large-scale split systems. Its robust design minimizes moving parts, reducing mechanical friction and extending the operational life of the HVAC system.
- Direct Replacement: Engineered to replace the older ZR94KC-TFD-950 model with the same footprint and piping configurations.
- Optimized Performance: Delivering 94,000 BTU/hr at 460V, it provides the necessary lift for large commercial tonnage requirements.
- Refrigerant Compatibility: Designed for R407C and R134a applications using polyolester (POE) lubricants.
- Quiet Operation: The scroll technology offers a smoother compression cycle compared to reciprocating units, reducing vibration and decibel levels.
Common Installation Questions
Is the ZR94KCE-TFD-950 compatible with older R22 systems?
While this model is primarily designed for R407C, it can be used in R22 retrofits provided the mineral oil is thoroughly flushed and replaced with the correct POE oil, as the internal components are optimized for synthetic lubricants.
What are the electrical specifications for this compressor?
This unit requires a 460V, 60Hz, 3-phase power supply. Always verify that your contactor and overcurrent protection are rated for the Maximum Continuous Current (MCC) specified on the nameplate.
Does this unit include the mounting hardware and molded plug?
Standard shipments typically include the mounting grommets and sleeves; however, the TFD-950 designation refers to the electrical terminal configuration which utilizes a terminal block or standard nut/stud connection rather than a molded plug.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
