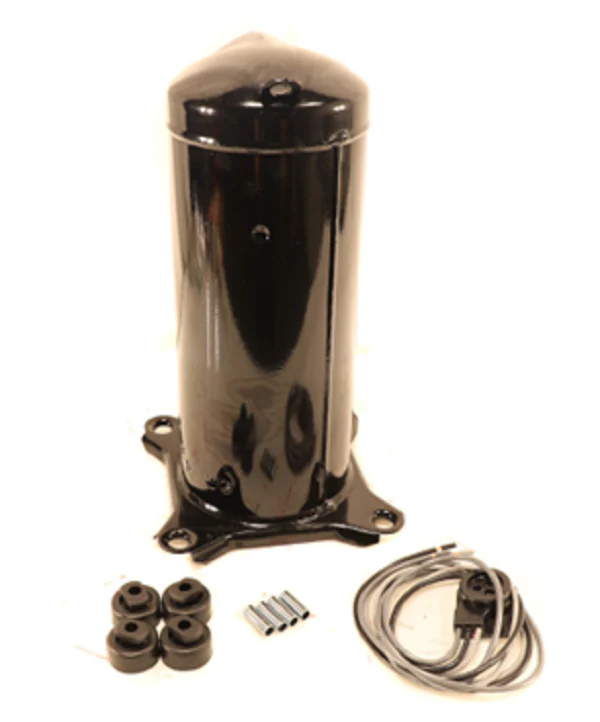

Copeland ZR54K5E-TFD-800 Compressor
The Copeland ZR54K5E-TFD-800 is a high-performance scroll compressor engineered for demanding air conditioning and light commercial HVAC applications. Operating on 460V 3-phase power at 60Hz, this unit delivers a nominal capacity of 54,000 BTU, making it a reliable 5-ton replacement for legacy R22 systems. Designed with the high-efficiency ZRK5 series motor, the system is also compatible with R407C refrigerant when used with POE oil, providing flexibility for different service scenarios. Its robust internal inherent protection and optimized scroll seal design ensure consistent performance under high-pressure conditions. Techs benefit from the included molded plug wiring harness, simplifying the electrical connection process in the field. This hermetic compressor features 7/8” suction and 1/2” discharge sweat connections, allowing for a standard braze-in installation. With approximately 70% fewer moving parts than reciprocating models, the ZR54K5E provides superior liquid handling and lower sound levels for residential and commercial environments.
Key Benefits- Dual Refrigerant Compatibility: Optimized for R22 service and fully compatible with R407C to streamline inventory.
- Enhanced Reliability: Features a larger shaft bearing system and internal pressure protection for long-term field stability.
- Efficient Performance: High EER rating of 11.3 minimizes electrical consumption compared to traditional reciprocating units.
- Simplified Installation: Comes with a molded plug and power cable for faster wiring on the job site.
- Quiet Operation: Redesigned shell and scroll technology significantly reduce vibration and operational noise.
What oil does this compressor come with?
This model is pre-charged with Polyol Ester (POE) oil, making it suitable for both R22 and R407C applications.
Is the wiring harness included in the box?
Yes, the Copeland ZR54K5E-TFD-800 includes the required molded plug wiring harness (part number 45-100834-80).
Can this be used on a 230V system?
No, this specific TFD model is rated for 460V 3-phase power only. For 230V applications, refer to the TF5 variation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
