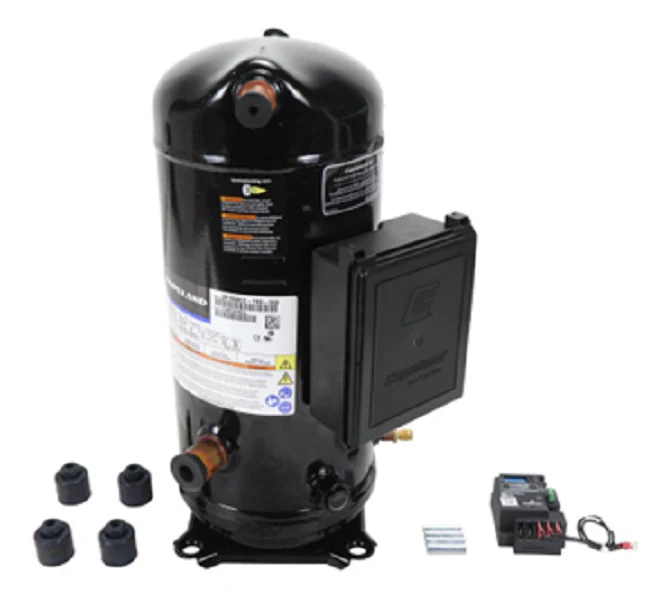

Copeland ZR190KCE-TED-950 Compressor
The Copeland ZR190KCE-TED-950 is a high-capacity commercial scroll compressor engineered for demanding HVAC and refrigeration applications. Operating at 460V, 3-phase power, this 15 HP unit delivers a nominal 190,000 BTU/hr of cooling capacity. It is specifically designed as a direct replacement for ZR190KCE-TFD-455, ensuring a seamless drop-in fit for existing systems. This model is highly versatile, utilizing POE oil to support R-407C, R-134A, and R-22 refrigerants. Built for durability, it features a 1-3/8" suction line and 7/8" discharge line stub, maintaining an efficient 3500 RPM speed. Contractors rely on the ZR Scroll series for its internal motor protection and reliable performance in rooftop units, chillers, and large-scale air conditioning systems where high-volume displacement (52.31 m³/hr) is required.
Key Benefits for Technicians- Direct Retrofit Compatibility: Serves as the factory-designated replacement for the ZR190KCE-TFD-455, minimizing piping modifications during changeouts.
- Multi-Refrigerant Versatility: Qualified for use with R407C, R134A, and R22, providing flexibility across various commercial cooling platforms.
- Industrial-Grade Protection: Equipped with internal thermal motor protection and discharge temperature sensing to prevent premature failure under high-load conditions.
- Simplified Installation: Standardized 1-3/8" x 7/8" sweat connections and a compact footprint allow for efficient integration into existing mechanical footprints.
What is the difference between the TED-950 and TFD-455 models?
The ZR190KCE-TED-950 is the updated service replacement model for the older TFD-455. It maintains the same electrical characteristics and mechanical specifications to ensure field compatibility.
Which oil type is pre-charged in this compressor?
This unit comes pre-charged with Polyolester (POE) oil, which is required for operation with HFC refrigerants like R-407C and R-134A, while remaining compatible with HCFC R-22.
Is this unit suitable for low-ambient applications?
Yes, the Copeland ZR Scroll technology is designed to handle a wide operating envelope, though we recommend verifying if your specific system requires additional crankcase heaters or head pressure controls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $6,827.31
-65%$6,827.31
$2,389.56Copeland ZR190KCE-TED-950 Compressor
The Copeland ZR190KCE-TED-950 is a high-capacity commercial scroll compressor engineered for demanding HVAC and refrigeration applications. Operating at 460V, 3-phase power, this 15 HP unit delivers a nominal 190,000 BTU/hr of cooling capacity. It is specifically designed as a direct replacement for ZR190KCE-TFD-455, ensuring a seamless drop-in fit for existing systems. This model is highly versatile, utilizing POE oil to support R-407C, R-134A, and R-22 refrigerants. Built for durability, it features a 1-3/8" suction line and 7/8" discharge line stub, maintaining an efficient 3500 RPM speed. Contractors rely on the ZR Scroll series for its internal motor protection and reliable performance in rooftop units, chillers, and large-scale air conditioning systems where high-volume displacement (52.31 m³/hr) is required.
Key Benefits for Technicians- Direct Retrofit Compatibility: Serves as the factory-designated replacement for the ZR190KCE-TFD-455, minimizing piping modifications during changeouts.
- Multi-Refrigerant Versatility: Qualified for use with R407C, R134A, and R22, providing flexibility across various commercial cooling platforms.
- Industrial-Grade Protection: Equipped with internal thermal motor protection and discharge temperature sensing to prevent premature failure under high-load conditions.
- Simplified Installation: Standardized 1-3/8" x 7/8" sweat connections and a compact footprint allow for efficient integration into existing mechanical footprints.
What is the difference between the TED-950 and TFD-455 models?
The ZR190KCE-TED-950 is the updated service replacement model for the older TFD-455. It maintains the same electrical characteristics and mechanical specifications to ensure field compatibility.
Which oil type is pre-charged in this compressor?
This unit comes pre-charged with Polyolester (POE) oil, which is required for operation with HFC refrigerants like R-407C and R-134A, while remaining compatible with HCFC R-22.
Is this unit suitable for low-ambient applications?
Yes, the Copeland ZR Scroll technology is designed to handle a wide operating envelope, though we recommend verifying if your specific system requires additional crankcase heaters or head pressure controls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
