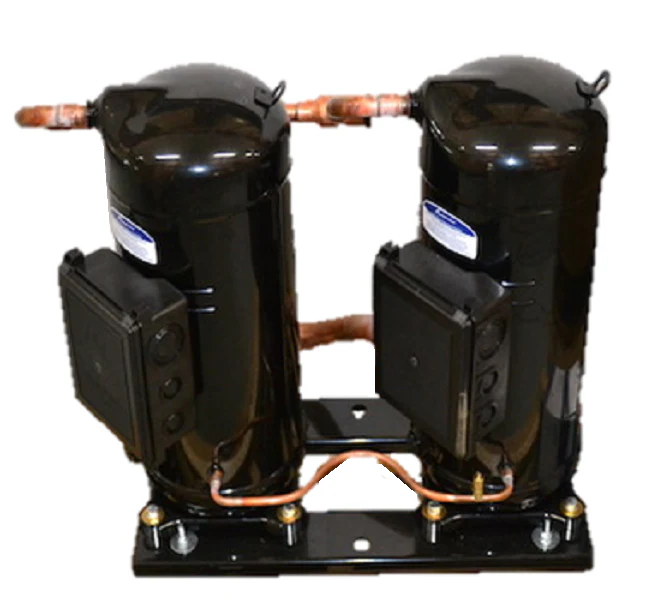

Copeland ZPT364KCE-TED-976 Compressor
The Copeland ZPT364KCE-TED-976 is a high-capacity tandem scroll compressor designed specifically for heavy-duty commercial HVAC systems, including large-scale chillers and rooftop units. Delivering 365,000 BTUH, this 460V, 3-phase unit is the direct technical replacement for the legacy ZPT364KCE-TED-275 model. Engineered for R-410A refrigerant applications, it utilizes PVE oil and features sweat/stub connections for secure integration into the refrigeration circuit. The scroll set is optimized for superior liquid handling and thermal efficiency, ensuring consistent performance during high-demand cooling cycles. This industrial HVAC compressor provides advanced motor protection and is built to handle the rigorous duty cycles of industrial environments. By employing a tandem configuration, it allows for precise load matching and improved seasonal energy efficiency ratios (SEER) in multi-stage systems.
Key Technical Benefits:
- Direct Drop-in Replacement: Seamlessly replaces ZPT364KCE-TED-275 models without extensive piping reconfiguration.
- High Cooling Density: Provides 365,000 BTUH of capacity, ideal for 30-ton class commercial equipment.
- Enhanced Reliability: Internal motor protection and robust scroll design minimize mechanical failure under extreme pressure.
- Broad Compatibility: Rated for 460V/60Hz and 380-420V/50Hz, making it suitable for a wide range of global power specifications.
- Optimized for R-410A: Designed to meet the high-pressure demands of modern HFC refrigerants.
Common Technical Questions:
What is the difference between the TED-976 and the TED-275?
The ZPT364KCE-TED-976 is the current production model and the official replacement for the TED-275; it maintains the same physical footprint and electrical requirements while incorporating modern manufacturing tolerances.
Is PVE oil compatible with systems previously using POE?
While PVE oil is the factory standard for this unit, it is highly hygroscopic and does not hydrolyze like POE. Ensure thorough vacuum procedures are followed to maintain system chemistry during the swap.
Can this compressor be used in a single-phase application?
No, this is a 3-phase (460V) compressor. Attempting to use a phase converter or improper voltage will cause immediate motor failure and bypass the internal protection mechanisms.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
