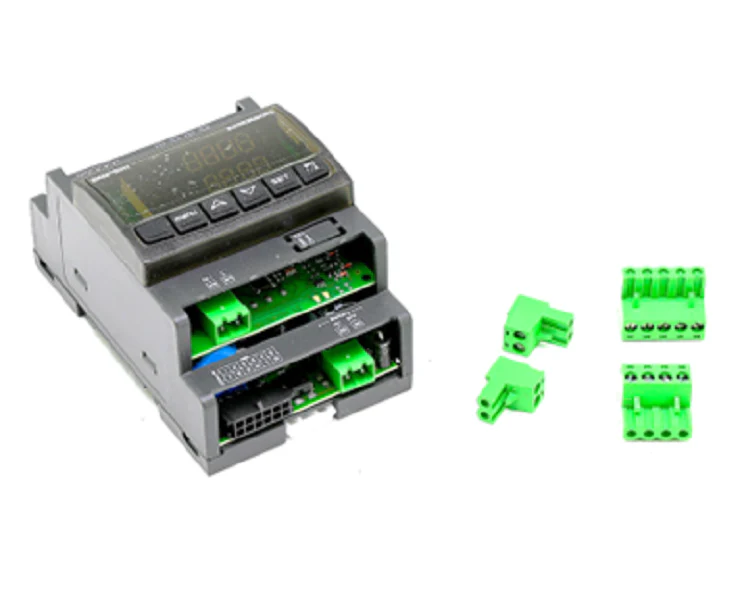

Copeland Comfort Control (Alco) 097175 Controller
The Copeland Comfort Control (Alco) 097175 is a high-performance Electronic Expansion Valve Controller specifically engineered for precise superheat control in complex refrigeration and air conditioning systems. Operating on a 24V AC/DC power supply, this single-circuit EXD-SH1 unit is the field-proven direct replacement for legacy models including the 097707, 807855, EC3-X33, and EC3-X32. As a stand-alone regulator, it utilizes a self-adapting PID algorithm to modulate bipolar stepper motor valves like the Emerson EX4-EX8 and CV4-CV7 series, ensuring optimal evaporator efficiency across a wide range of refrigerants including R410A, R404A, R134a, and R744 (CO2).
Designed for professional industrial applications, the 097175 Controller features integrated Modbus RTU communication for seamless BMS integration and remote monitoring. The unit provides critical protection via MOP (Maximum Operating Pressure) limitation, low-pressure switch functionality, and freeze protection. With its DIN rail mounting and plug-in screw terminals, it simplifies HVAC system diagnostics and field installations. This controller is essential for maintaining energy-efficient HVAC solutions by preventing liquid slugging and optimizing the heat exchange process in commercial systems.
Key Benefits for Contractors:- Direct Retrofit Compatibility: Seamlessly replaces obsolete EC3-X33 and EC3-X32 controllers without extensive wiring modifications.
- Universal Refrigerant Support: Pre-programmed for multiple gas types, including A2L and A3 options, making it a versatile tool for any HVAC contractor.
- Precision Stepper Motor Control: Delivers sub-degree superheat control accuracy to maximize compressor longevity and system COP.
- Advanced System Safety: Built-in alarms for sensor failures and stepper motor wiring issues ensure total circuit reliability.
- User-Friendly Interface: Integrated keyboard and two-line display allow for rapid AC troubleshooting and parameter adjustment in the field.
Does the 097175 support digital communication for remote monitoring?
Yes, the EXD-SH1 includes RS485 Modbus RTU ports, allowing technicians to read all data points and adjust setpoints through a central supervisory system.
Which expansion valves are compatible with this specific controller?
It is designed to drive Emerson stepper motor driven valves (EX4 through EX8) and the CV series, providing the necessary bipolar current for precise positioning.
What happens if the power is lost during operation?
For fail-safe requirements, the controller can be paired with an optional EXD-PM supercapacitor or battery backup to ensure the valve closes fully upon power failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
