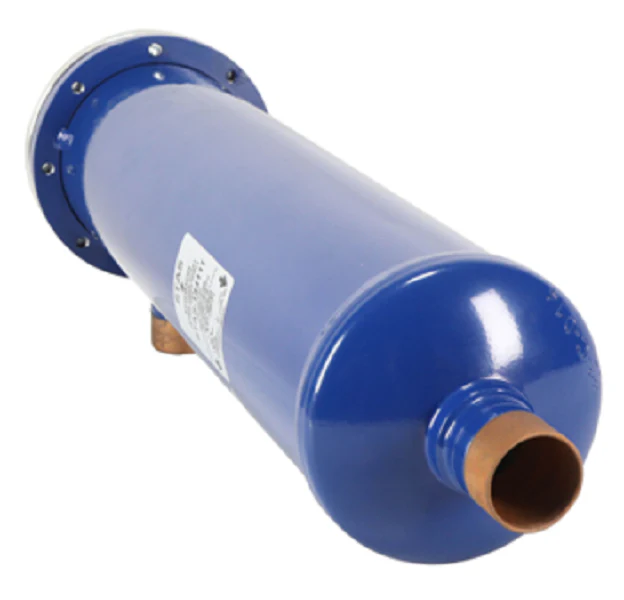

Copeland Comfort Control (Alco) 053022 Filter Drier
The Copeland Alco 053022 Filter Drier, also known as the Model STAS14411T, is a heavy-duty steel liquid line filter drier engineered for large-scale commercial refrigeration and air conditioning systems. This high-capacity replaceable core filter drier features a 144 cubic inch capacity housing designed to accommodate 3 filter cores (sold separately), providing versatile protection against moisture, acid, and solid contaminants. With a 1 3/8" sweat (ODF) connection and a robust 680 PSI maximum working pressure, it is optimized for high-pressure refrigerants including R-410A, making it a reliable choice for HVAC system protection. As a direct replacement for FDSH-144-11-S, this unit ensures seamless integration during retrofits. The steel shell filter drier construction includes solid copper connections for easier brazing and a corrosion-resistant epoxy powder finish to withstand harsh mechanical environments. For technicians managing commercial HVAC filtration, the STAS series offers a low pressure drop design and a 100-mesh outlet screen to prevent desiccant migration into the expansion valve or compressor.
- High-Pressure Capability: Rated for up to 680 PSI, making it suitable for modern HFC and CO2 (R-744) applications.
- Modular Contaminant Control: Utilizes three 48 cubic inch cores (sold separately) to allow for customized acid or moisture removal based on system needs.
- Durable Construction: Features sturdy steel shells with an epoxy coating and solid copper ODF fittings for long-term field reliability.
- Direct Cross-Compatibility: Engineered as a drop-in replacement for the obsolete FDSH-144-11-S model.
- System Protection: Includes a 100-mesh outlet screen to trap fine particulates and protect sensitive metering devices.
Common Questions
Does this unit come with the internal cores?
No, the STAS14411T is a shell-only assembly. You must purchase three 48 cubic inch cores (such as the UK-48 or H-48) separately depending on whether you need standard drying or burnout cleanup.
Can this shell be used in suction line applications?
While primarily used as a liquid line filter drier, the STAS series can be adapted for suction line service by installing the appropriate suction-line cores and an access valve for monitoring pressure drop.
What is the best way to prevent paint damage during installation?
Since these units feature solid copper connections, always use a wet rag or heat-sink paste on the steel shell during brazing to preserve the corrosion-resistant epoxy finish.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $343.54
-65%$343.54
$120.24Copeland Comfort Control (Alco) 053022 Filter Drier
The Copeland Alco 053022 Filter Drier, also known as the Model STAS14411T, is a heavy-duty steel liquid line filter drier engineered for large-scale commercial refrigeration and air conditioning systems. This high-capacity replaceable core filter drier features a 144 cubic inch capacity housing designed to accommodate 3 filter cores (sold separately), providing versatile protection against moisture, acid, and solid contaminants. With a 1 3/8" sweat (ODF) connection and a robust 680 PSI maximum working pressure, it is optimized for high-pressure refrigerants including R-410A, making it a reliable choice for HVAC system protection. As a direct replacement for FDSH-144-11-S, this unit ensures seamless integration during retrofits. The steel shell filter drier construction includes solid copper connections for easier brazing and a corrosion-resistant epoxy powder finish to withstand harsh mechanical environments. For technicians managing commercial HVAC filtration, the STAS series offers a low pressure drop design and a 100-mesh outlet screen to prevent desiccant migration into the expansion valve or compressor.
- High-Pressure Capability: Rated for up to 680 PSI, making it suitable for modern HFC and CO2 (R-744) applications.
- Modular Contaminant Control: Utilizes three 48 cubic inch cores (sold separately) to allow for customized acid or moisture removal based on system needs.
- Durable Construction: Features sturdy steel shells with an epoxy coating and solid copper ODF fittings for long-term field reliability.
- Direct Cross-Compatibility: Engineered as a drop-in replacement for the obsolete FDSH-144-11-S model.
- System Protection: Includes a 100-mesh outlet screen to trap fine particulates and protect sensitive metering devices.
Common Questions
Does this unit come with the internal cores?
No, the STAS14411T is a shell-only assembly. You must purchase three 48 cubic inch cores (such as the UK-48 or H-48) separately depending on whether you need standard drying or burnout cleanup.
Can this shell be used in suction line applications?
While primarily used as a liquid line filter drier, the STAS series can be adapted for suction line service by installing the appropriate suction-line cores and an access valve for monitoring pressure drop.
What is the best way to prevent paint damage during installation?
Since these units feature solid copper connections, always use a wet rag or heat-sink paste on the steel shell during brazing to preserve the corrosion-resistant epoxy finish.
