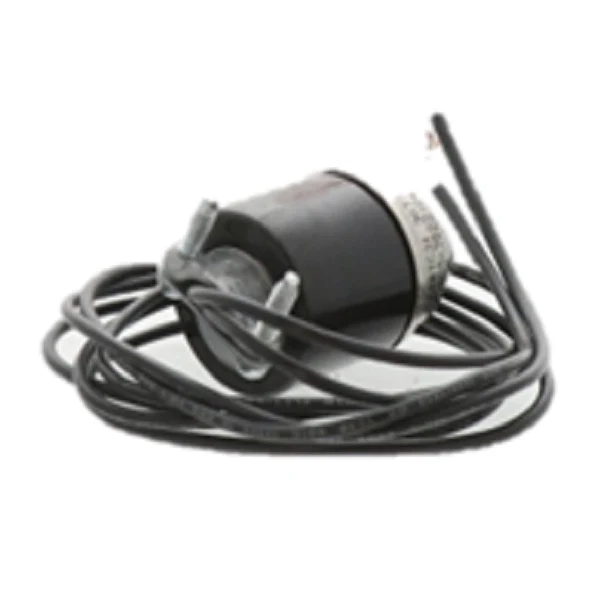

Copeland 998-7022-02 Tstat Kit
Optimize your compressor’s protection with the Copeland 998-7022-02 Tstat Kit, a critical component for monitoring and regulating discharge line temperatures in high-performance refrigeration and AC systems. Engineered specifically for a 1/2" O.D. discharge line, this kit acts as a fail-safe in the compressor control circuit, ensuring the system cuts out before reaching the maximum thermal limit of 260°F. By preventing internal oil breakdown and valve plate damage caused by excessive heat, this industrial-grade thermostat significantly extends compressor service life. The kit includes a TOD (Therm-O-Disc) thermostat, mounting retainer, and 36-inch leads, designed for seamless integration into 120V or 240V control circuits. For maximum accuracy, technicians should install the sensor approximately 7 inches from the discharge tube outlet, ensuring a tight thermal bond to the copper piping to prevent nuisance tripping and maintain efficient head pressure control during high-ambient operation.
Key Benefits- Precise Thermal Protection: Prevents compressor failure by terminating the control circuit when discharge temperatures exceed safe operating parameters.
- Direct Line Integration: Specifically sized for 1/2 inch HVAC discharge lines to ensure optimal thermal transfer and fast response times.
- Complete Installation Kit: Includes the OEM Copeland thermostat, secure metal retainer clip, and long-reach 36" electrical leads.
- Universal Voltage Compatibility: Field-proven design works reliably in both 120V and 240V refrigeration control schemes.
- Robust Build Quality: Constructed for the rigors of industrial environments, manufactured in the United States to strict Copeland specifications.
Where should the 998-7022-02 sensor be mounted for the most accurate reading?
For peak performance, install the thermostat approximately 7 inches from the compressor discharge outlet. If a service valve is present, place it 5 inches from the valve braze. Always insulate the sensor if it is exposed to direct airflow from condenser fans.
Can this kit be used on larger or smaller discharge lines?
No, this specific kit is precision-engineered for 1/2" O.D. tubing. Using it on different sizes will result in poor thermal contact and inaccurate temperature sensing, potentially leading to compressor overheating.
Does this kit include an alarm circuit?
The 998-7022-02 is a standard cut-out thermostat. If your system requires a secondary signal for a building management system (BMS) or alarm, verify your specific wiring diagram as this model focuses on the primary safety loop.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
