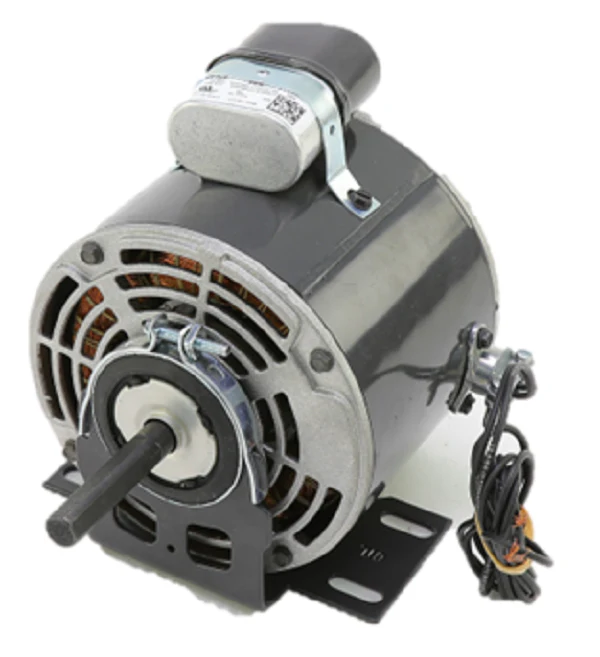

Copeland 950-0250-00 Motor
The Copeland 950-0250-00 is an industrial-grade refrigeration condenser fan motor designed for high-efficiency thermal management in commercial HVACR systems. Operating at 208-230V on a single-phase (1ph) power supply, this 1/4 HP motor is engineered for continuous duty in demanding environments. With a fixed speed of 1625 RPM and a NEMA 48 frame, it delivers consistent static pressure performance required for optimal heat exchange. The PSC (Permanent Split Capacitor) design and Open Air Over (OAO) enclosure ensure cool operation, while the sleeve bearing system provides quiet, reliable rotation for standard condenser applications. This OEM replacement motor features a 1/2-inch shaft diameter and a resilient base mount to mitigate vibration transfer through the chassis. When performing a field replacement, verify the 1.5-amp draw and CCWSE rotation to ensure localized compatibility with existing fan blade pitch and airflow requirements.
Key Benefits
- Precise Airflow: The 1625 RPM rating ensures that condenser fan motors maintain the correct CFM for refrigerant subcooling.
- Durable Construction: Built with a resilient mount and a weight of 14 lbs, this heavy-duty unit is designed to withstand 50/60 Hz cycling without premature winding fatigue.
- Standardized Integration: Features a NEMA 48 frame and a 3-7/8 inch shaft length for straightforward installation in diverse Copeland refrigeration units.
- Efficient Power Usage: The 1/4 HP PSC motor design optimizes energy consumption while maintaining the high torque needed for HVAC compressor cooling.
Common Questions
How do I verify the rotation for the Copeland 950-0250-00?
This motor is typically rated for Counter-Clockwise (CCW) rotation when viewed from the lead end. Always check the fan blade orientation against the motor nameplate to ensure air is pulled through the coil correctly.
Does this motor require a start capacitor or a run capacitor?
As a Permanent Split Capacitor (PSC) motor, it requires a run capacitor (often included in the package) to maintain a consistent magnetic field for efficient 230V operation.
Can I use this motor in a 460V system?
No, the 950-0250-00 is specifically rated for 208-230V single-phase applications. Voltage mismatch will lead to immediate winding failure and potential safety hazards on the job site.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
