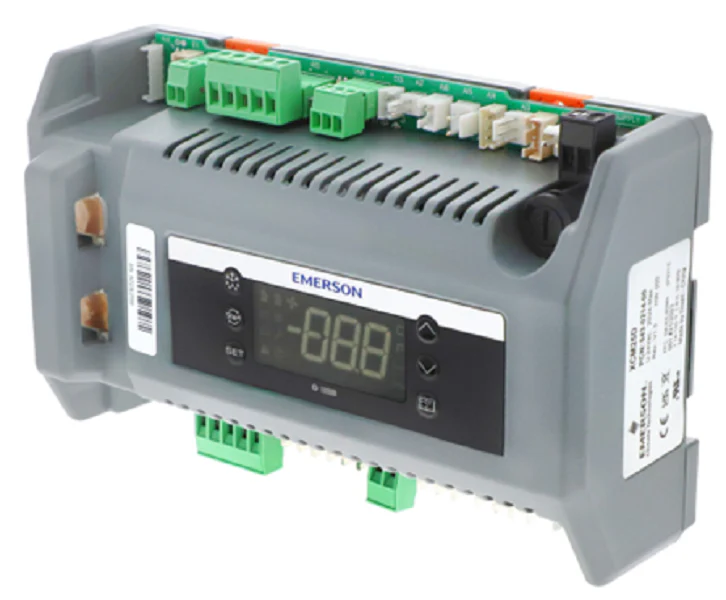

Copeland 943-0214-00 Control
The Copeland 943-0214-00 is an essential XCM25D electronic unit controller engineered for comprehensive management of commercial refrigeration condensing units. This microprocessor-based module integrates multiple system functions into a single interface, effectively replacing mechanical low-pressure controls, fan cycle switches, and individual relays. Operating on a 24VAC power supply, it features CoreSense™ technology to provide advanced protection and diagnostics, including over-current protection and incorrect phase sequence protection for three-phase systems. The 943-0214-00 controller monitors critical system parameters like suction pressure and discharge line temperature (DLT) to prevent compressor overheating and floodback. With its versatile 14-140°F operating range and Modbus RTU communication capabilities, this OEM Copeland controller ensures seamless integration and high-efficiency operation in demanding HVACR applications.
Key Benefits for Contractors:- Integrated System Control: Manages compressor cycling, condenser fan operation, and defrost timing within a single electronic unit controller.
- Advanced Protection: Utilizes CoreSense™ technology for fault diagnostics and automated compressor lockouts during high-current events.
- Simplified Installation: Replaces multiple mechanical components, reducing wiring complexity and potential points of failure in the field.
- Precision Monitoring: Real-time tracking of refrigeration system pressures and temperatures to optimize the compression ratio.
- Certified Reliability: CE and cURus certified, meeting rigorous safety standards for industrial refrigeration equipment.
Does the XCM25D 943-0214-00 come pre-programmed?
Yes, the Copeland 943-0214-00 is typically factory-configured for standard condensing unit parameters. However, specific setpoints for fan maps and defrost intervals can be adjusted via the XCM25D controller interface or a Hot-Key for specialized applications.
What should I check if the controller display is blank?
Verify the 24VAC supply at the power terminals and inspect all wiring for continuity. If power is present and the display remains inactive, the internal logic board may need replacement.
How does this controller handle compressor alarms?
The unit is designed to monitor for over-current and high suction pressure. If a fault is detected multiple times within an hour, the controller will initiate a lockout, requiring either a manual reset or a power cycle to clear the alarm codes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $450.43
-65%$450.43
$157.65Copeland 943-0214-00 Control
The Copeland 943-0214-00 is an essential XCM25D electronic unit controller engineered for comprehensive management of commercial refrigeration condensing units. This microprocessor-based module integrates multiple system functions into a single interface, effectively replacing mechanical low-pressure controls, fan cycle switches, and individual relays. Operating on a 24VAC power supply, it features CoreSense™ technology to provide advanced protection and diagnostics, including over-current protection and incorrect phase sequence protection for three-phase systems. The 943-0214-00 controller monitors critical system parameters like suction pressure and discharge line temperature (DLT) to prevent compressor overheating and floodback. With its versatile 14-140°F operating range and Modbus RTU communication capabilities, this OEM Copeland controller ensures seamless integration and high-efficiency operation in demanding HVACR applications.
Key Benefits for Contractors:- Integrated System Control: Manages compressor cycling, condenser fan operation, and defrost timing within a single electronic unit controller.
- Advanced Protection: Utilizes CoreSense™ technology for fault diagnostics and automated compressor lockouts during high-current events.
- Simplified Installation: Replaces multiple mechanical components, reducing wiring complexity and potential points of failure in the field.
- Precision Monitoring: Real-time tracking of refrigeration system pressures and temperatures to optimize the compression ratio.
- Certified Reliability: CE and cURus certified, meeting rigorous safety standards for industrial refrigeration equipment.
Does the XCM25D 943-0214-00 come pre-programmed?
Yes, the Copeland 943-0214-00 is typically factory-configured for standard condensing unit parameters. However, specific setpoints for fan maps and defrost intervals can be adjusted via the XCM25D controller interface or a Hot-Key for specialized applications.
What should I check if the controller display is blank?
Verify the 24VAC supply at the power terminals and inspect all wiring for continuity. If power is present and the display remains inactive, the internal logic board may need replacement.
How does this controller handle compressor alarms?
The unit is designed to monitor for over-current and high suction pressure. If a fault is detected multiple times within an hour, the controller will initiate a lockout, requiring either a manual reset or a power cycle to clear the alarm codes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
